Description
Overview

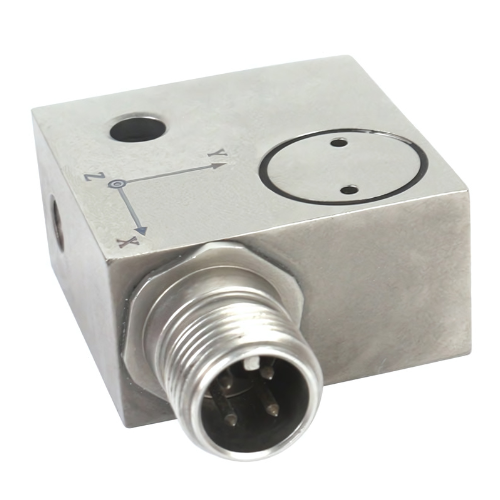

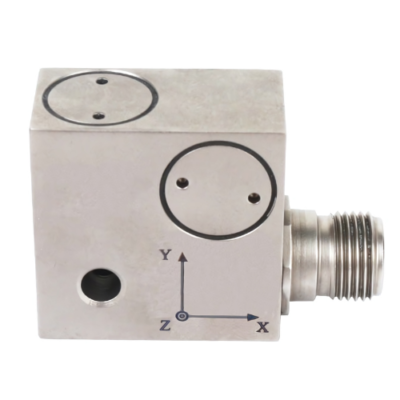

Asset Track Pro Tri Vibe Sense Integrative Piezoelectric Speed Triaxial Accelerometer is designed with piezoelectric effect principle, 3-axis measurement, supports a variety of installation options, can provide high performance and excellent value, to meet diversified tests to the greatest extent. The product is embedded with a precision integrating circuit, which can measure the three directions of X, Y, and Z at the same time, and output 4 mA to 20 mA or IEPE signal. Users can connect PLC/DCS or other monitoring equipment of collector, used for vibration state monitoring of gears and bearings of industrial rotating machinery (motors, pumps, centrifuges, compressors, blowers, etc.), fault monitoring, engineering geology, geological monitoring, vibration of high-rise buildings and large structures, etc.
Features
- Precision machining.
- Strong and durable.
- No burns on the surface.
- Reliable quality.
- 3- axis measurement.
Technical Specifications
| Transverse Sensitivity | 100 m V/g (160 Hz) |
| Frequency Response (± 1 dB) | 1 Hz to 5,000 Hz |
| Installed Resonance Frequency | ≥ 15,000 Hz |
| Transverse Sensitivity Ratio | ≤ 5 % |
| Excitation Voltage | 18 VDC to 28 VDC |
| Constant Current Source Excitation(mA) | 2 to 10 mA |
| Output Impedance | < 100 Ω |
| Full Range Output (Peak) | ± 5 V |
| Noise | < 50 μ V |
| Bias Voltage | +6 to +8 V |
| Measuring Range | ± 3.53 oz (± 100 g) |
| Working Temperature | -40 °F to 248 °F (-40 ℃ to +120 ℃) |
