Description
Overview

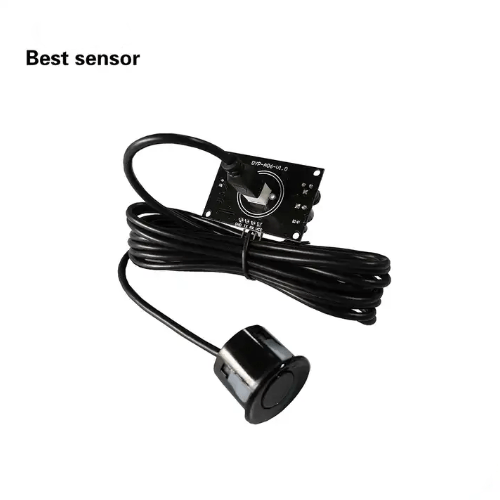

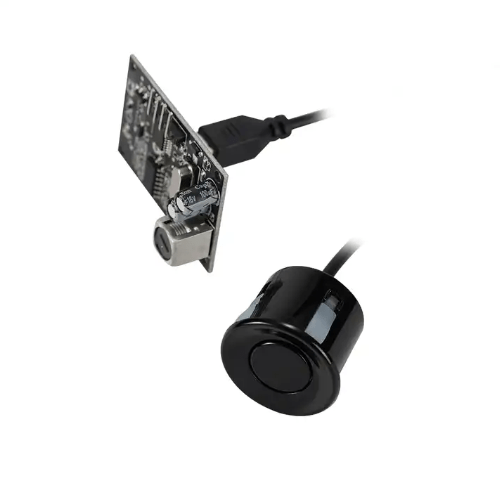

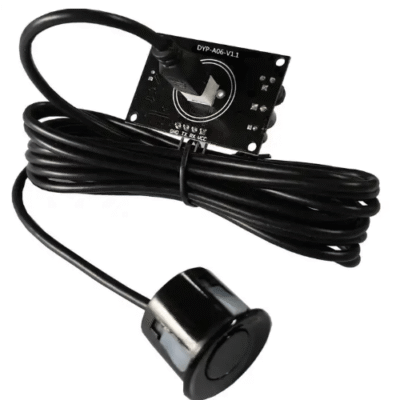

Asset Track Pro ultrasonic LiDAR parking sensor adopts a high-performance processor and high-quality components. Sensors are stable and reliable with long life spam. The module design with waterproof ultrasonic transduce suitable for different working environments. Built-in high-precision distance sensing algorithm and power consumption management program, high measuring accuracy and low power consumption.
Features
- Design with intelligent signal processing circuit, small dead band
- Large measuring range
- Build in high precision distance sensing algorithm
- Minimum error <0.2 in
- Build in authentic target identification algorithm
- Controllable measuring angle, high sensitivity and anti-jamming
- Specific measuring mode setting available for human or flat objects
- High level PWM output, UART output, Switch output optional
- Temperature compensation at 5 ℉ to 140 ℉ (-15 ℃ to 60 ℃)
- Lower power consumption design, standby current <5 uA
- Operating current 15 mA (3.3 V supply voltage)
- Anti-static electricity design in accordance with IEC 61000-4-2 standard
- Intelligent algorithm circuit, SMT, more stable
- 01 ft probe extended cable, support different applications
- IP 67 protection integrated probe
- Measuring range and dead band
- Transceiver split waterproof probe, silicone protection and shockproof
- Single row pitch 0.1 in 4P
Technical Specifications
| Dead Band | 9.84 in (25 cm) |
| Measuring range of Flat objects | 9.84 in to 177.7 in (25 cm to 450 cm) |
| Beam Angle | ≈45° |
| Response time | 300 ms to 500 ms, 15 ms to 65 ms, 300 ms to 500 ms, 8 ms to 15 ms |
| MTTF | 26000 Hrs |
| Supply Voltage | 3.3 V to 5.0 V (DC) |
| Residual ripple | <50 mA |
| Power consumption | ≤20 mA |
| Connection type | UART automatic, UART control, PWM,Switch |
| Output signal | TTL signal, Pulse width signal |
| Output current | <9 mA |
| Measurement accuracy | ±1 and S x 0.3% cm,±1 and S x 0.5% cm |
| Process connection | Single row pitch 0.1 in (2.54 mm) 4P |
| Housing material | ABS |
| Ambient operating temperature | 5 ℉ to 140 ℉ (-15 ℃ to 60 °C) |
| Ambient temperature storage | -13 ℉ to 176 ℉ (-25 ℃ to 80 °C) |
