Description
Overview

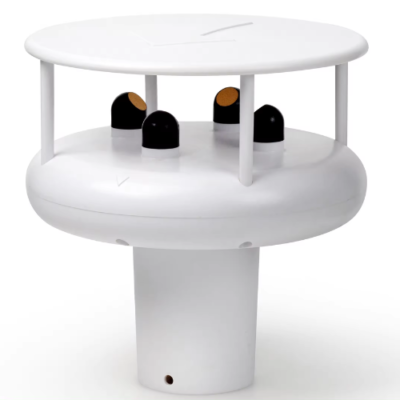

Asset Track Pro ultrasonic precision sensor with acoustic phase compensation & 3d stability Ultrasonic 2D Anemometer is a compact ultrasonic wind speed and wind direction sensor. It is designed to simultaneously measure the 2-dimensional horizontal components of the wind speed and direction. Using ABS shell, Weight is lighter, and Structure is more stable. Build-in own intelligent heating module, it can work normally under the cold and freezing weather.
Features
- No moving or wearing parts
- Using engineering plastic or aluminium alloy shell make it lighter
- Adopts the reflecting type of ultrasonic probe, the structure robust
- Using acoustic phase compensation technology, precision is higher
- Build-in three axis electronic compass
- 3D acceleration module can provide the stability of the vertical and horizontal swing data.
Technical Specifications
| Power supply | DC 12 V to 24 V |
| Power consumption | <=1 W (With Heating <=3 w) |
| Range | 0 m/s to 60 m/s |
| Accuracy | ± 2 % |
| Resolution | 0.01m/s (0.02 knots) |
| Response Time | 1s (0.25s customized) |
| Threshold | 0.01m/s |
| Output | Standard: 1 output per sec
4 per second customized |
| Parameters | Wind Speed & Direction |
| Communication
Protocol |
MODBUS or NMEA-0183 |
| Protection Class | IP65 |
| Operating Humidity | 0 % RH to 100 % RH |
| EMC | EN 55032:2015
EN 55024:2010 |
| Operating Temperature | -40 ℉ to +158 ℉ (- 40 ℃ to + 70 ℃) |
| Storage Temperature | -58 ℉ to + 176 ℉ (- 50 ℃ to + 80 ℃) |
| Weight | 23.99 oz (680 g) |
