Description
Overview

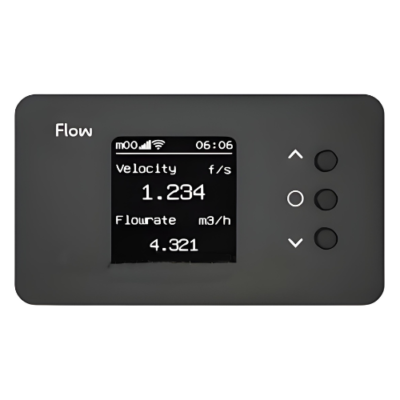

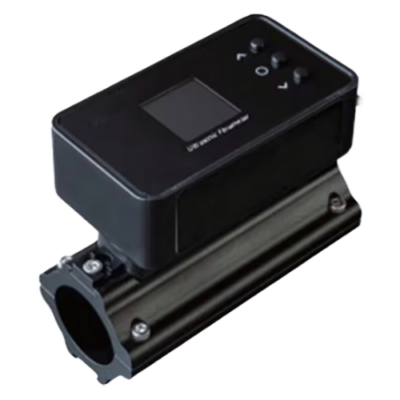

Asset Track Pro Ultrasonic Water Flow Sensor has Compact Design, which allows fast installation and convenient flow measurement. The flow meter comprises of 2 flow measurement sensors, clamps, and a Central Processing Unit for flow metering. Non-invasive installation available, the sensors are installed outside the pipe. Easy to install and will not interrupt the manufacturing process. No pressure drops, low maintenance cost.
Technical Specifications
| Display | LCD 1.44 in (3.65 cm) |
| Flow Rate | 0.1 ft per s to ± 16 ft per s (0.03 m per s to ± 5 m per s) |
| Power | 10 V DC to 36 V DC, 500 mA |
| Accuracy level | 2% |
| Repeatability | 0.8% |
| Keyboard | 3 touch keys |
| Transducer | Clamp on type |
| Operating Temperature | 32 ℉ to 140 ℉ (0 ℃ to 60 ℃) |
| Cable | 7 ft (2 m) Length |
