Description
Features
- Waterproof RFID Reader: Resistant to water, reads RFID signals
- EM Card 125KHz: RFID card frequency, supports optional 13.56MHz
- Wiegand 26 or 34 Interface: Data communication protocol for RFID readers
- Wiegand 26 or 34, RS485 or 232 Communication: Data transmission methods for reader integration
- Operating Temperature: Range of usable environmental temperatures
- Working Voltage: Power supply range for operation
- Operating Current: Maximum electrical current during operation
- Dimensions: Physical size in millimeters
Technical Specifications
| Frequency | 125KHz |
| Type | Waterproof RFID Reader |
| Card Type | EM Card 125KHz (Optional 13.56Mhz Card) |
| Interface | Wiegand 26 or Wiegand 34 |
| Communication | Weigand 26 or Wiegand 34 or RS485 |
| Operating Temperature | 14°F to 198°F (-10℃ to 70℃) |
| Working Voltage | DC 9 to 16 V |
| Operating Current | ≤100mA |

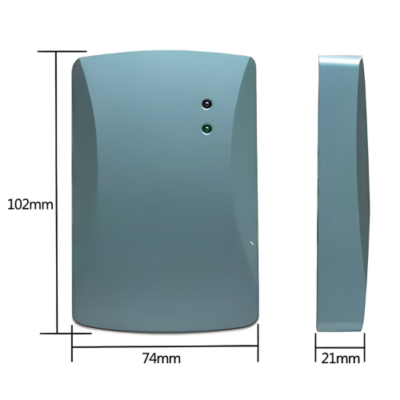

| Dimensions | 4.80in x 3.39in x 0.79in (102 mm x 74 mm x 21 mm) |
