Description
Overview

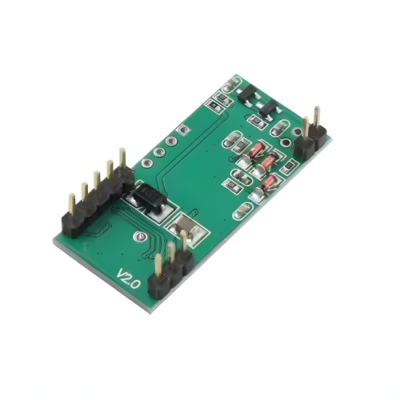

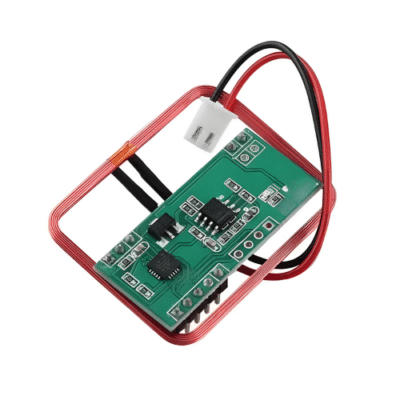

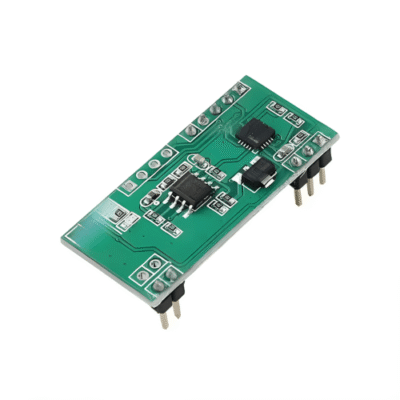

Asset Track Pro 125 Khz RFID Emulation Access Control Module is a 125 KHz read only module for EM 4100 or TK 4100 125 KHz cards, which can read and output CSN card number. It has option of Wiegand 26, RS 232 and TTL output format.
Features
- 125 KHz Operating Frequency
- Available to be embedded into individual items
- Read CSN card number only
- Different output formats
Technical Specifications
| Frequency | 125 KHz |
| Protocol | ISO 14443A or B, ISO 15693 and ISO 18092 |
| Interface | Wiegand 26 TTL RS 232 |
| Protection Level | IP65 |
| Card Format | EM 4001 or compatible |
| Power Supply | 3.3 V to 5 V |
| Supporting Card | EM 4100 TK 4200 EM 4200 |
| Card Reading Distance | > 0.03 ft (8 cm) |
| Connection | Metal Pin Connection |
| Antenna | External, Variety of Optional Specifications |
| Read Or Write | read UID only |
| Operating Temperature | -14 °F to 158 °F (-10 °C to 70 °C) |
| Size | 1.54 in X 0.75 in X 0.35 in (39 mm X 19 mm X 9 mm) |
