Description
Overview

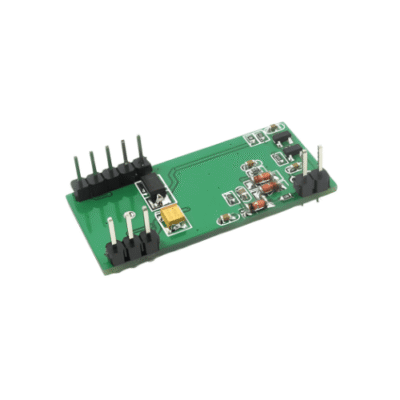

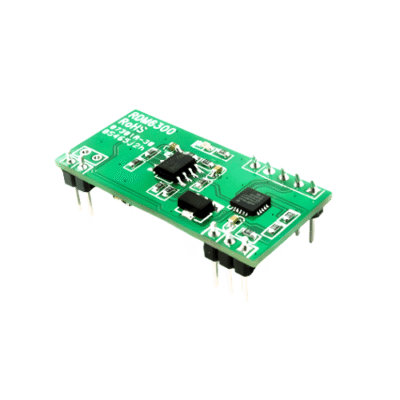

Asset Track Pro RFID Reader read only tags Module is designed for reading code from 125 KHz card compatible read-only tags and read/write card. It can be applied in office/home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc.
Technical Specifications
| Frequency | 125 KHz |
| Distance | 5.91 in (150 mm) |
| Interface | Uart |
| decoding Time | < 100 ms |
| Support | EM 4100 compatible read only or read or write tags |
| Input Voltage | 5 V |
| Connectivity | RFID |
| Voltage | 3.3 V to 5 V |
| Applications | for Programming |
| Size | 1.57 in X 1.18 in X 0.39 in (40 mm to 30 mm to 10 mm) |
| Weight | 0.53 oz (15 g) |
