Description
Overview

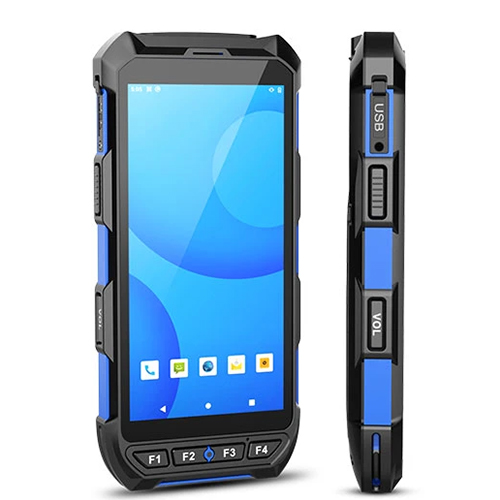

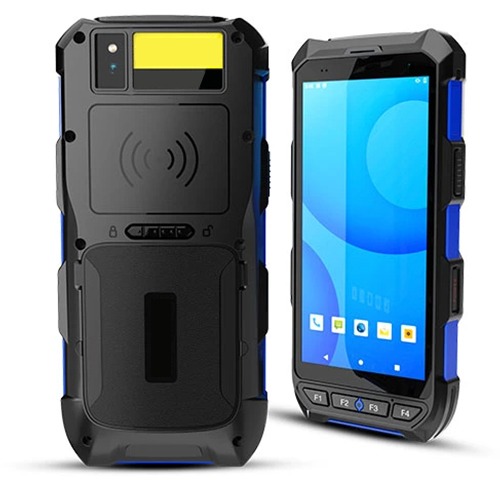

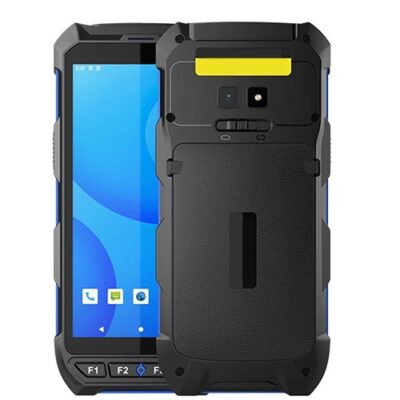

Asset Track Pro PDA Barcode RFID Readers is 5.5-inch Rugged Handheld Computer for warehousing. Asset Track Pro Android PDA Barcode RFID Readers is a 5.5-inch rugged mobile PDA offering 80% screen to body ratio, featuring versatile functionality with powerful data collection. Specially designed for portability and stability, It is combined with a compact and durable structure design, which makes it an ideal tool to increase higher efficiency for applications in the retail, logistic, warehousing and light-duty Field Service
Technical Specifications
| Operating system OS
CPU Memory Languages support |
Android 10 OS 2.0GHz, MTK Octa-core Processor 3 GB RAM or 32 GB Flash (4+64GB optional) English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware Specification | |
| Screen Size
Touch Panel Buttons / Keypad Card readers (optional) Camera Indicator Type Battery |
5.5inch, TFT-LCD (720×1440) touch screen with backlight
Gorilla glass III with 5 points Capacitive Touch Screen 4 keys- Programmable function button; dual dedicated scan buttons; volume up/down buttons; on/off button Contactless Card, Support ISO / IEC 14443 A&B, Mifare, felica card conform to EMV / PBOC PAYPASS standard Front 5 megapixels (optional), rear 13 megapixels, with flash and auto focus function LED, Speaker, Vibrator Rechargeable li-ion polymer, 3.8V,7200mAh |
| Symbologies | |
| 1D Barcode
2D Barcode HF RFID |
1D: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32,Code 93,Codabar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic
2D: PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix,QR code,Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet,UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc Support HF/NFC Frequency 13.56Mhz |
| Communication | |
| Bluetooth®
WLAN WWAN GPS |
Bluetooth®4.2
Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency GSM: 850,900,1800,1900 MHz GPS/BDS/Glonass, error range ± 5m |
| I/O Interfaces | |
| USB
POGO PIN SIM Slot Expansion Slot Audio |
USB 3.1 (type-C) support USB OTG
PogoPin bottom: Charging via cradle Dual nano SIM Slot Micro SD, up to 256 GB One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones |
| Enclosure | |
| Dimensions (W x H x D)
Weight |
170 mm x 80 mm x20 mm
380g (with battery) |
| Durability | |
| Drop Specification
Sealing |
1.2m, 1.5m with boot case, MIL-STD 810G
IP65 |
| What comes in the box | |
| The standard package contents | C6000 Terminal USB Cable (Type C) Adaptor (Europe) Lithium Polymer Battery |

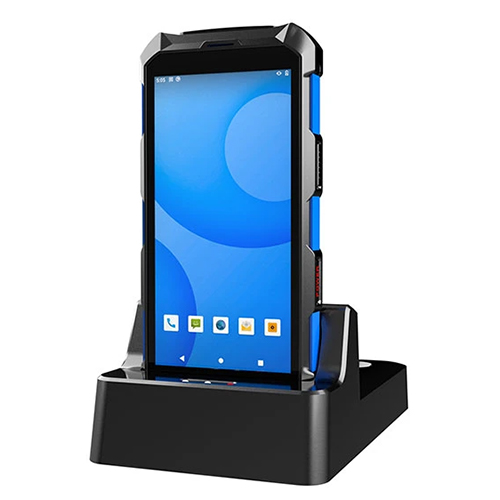

| Optional Accessory | Hand Strap Charging docking |
| Environmental | |
| Operating Temperature
Storage Temperature Charging Temperature Relative Humidity |
-20°C to 50°C
-20°C to 70°C (without battery) 0°C to 45°C 5% to 95% (non-condensing) |
