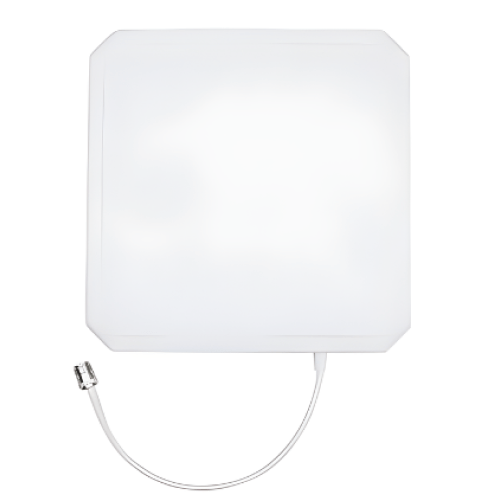

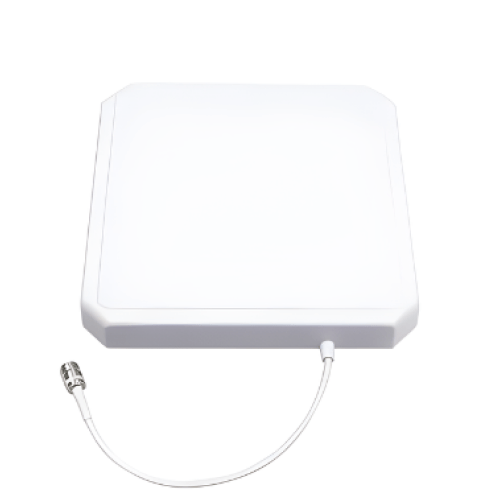

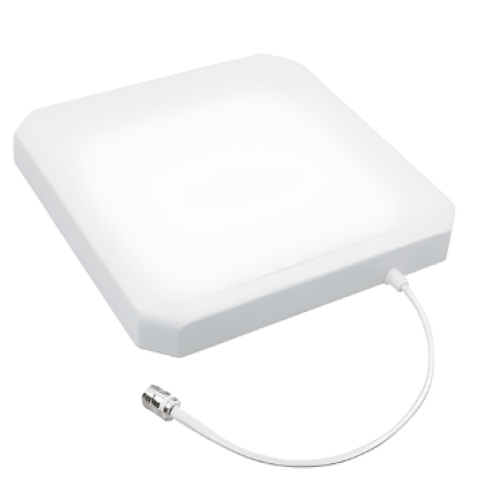

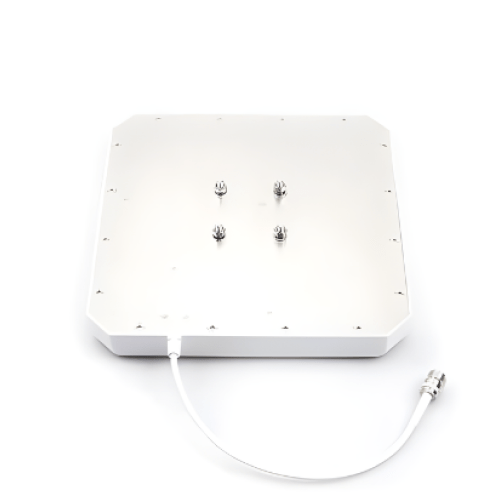

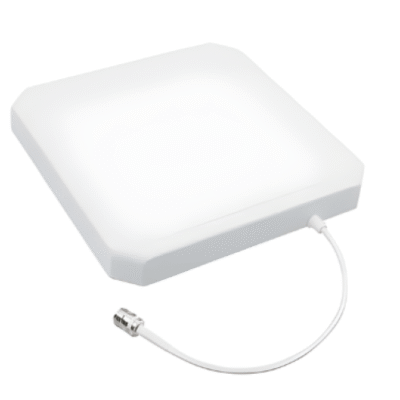

High-Gain UHF RFID 902-928 MHz Directional Antenna, Circular Polarization – Asset Track Pro

SKU: ATPANT-281 Category:

Features

  • Provides a means of communicating with a transponder (RFID tag)
  • Provide the energy for RFID tags to communicate
  • Receives the radio frequency signal from the reader and transmits it to the RFID tag chip
  • The data signal in the RFID tag chip is transmitted back to the reader
  • Resist all kinds of interference to ensure stable transmission of the signal



Technical Specifications

Frequency Range 902 MHz to 928 MHz
Gain 9 dBi
Beam Width Horizontal 65 °, Vertical 65 °
VSWR ≤ 1.3
Lightning Protection Direct ground
Impedance 50 Ω
Polarization Circular polarization
Axial Ratio ≤ 2 dB
Maximum Power 50 W
Connector N Female
Connector Position Lateral extraction
Reflector Material Aluminum
Radome Material PC and ABS
Radome Color White
International Protection IP54 and IP65 and IP67
Mounting Hardware Φ 1.57 in to Φ 1.97 in (φ 40 mm to φ 50 mm)
Operating Temperature -40 °F to 140 °F (- 40 °C to 60 °C)
Dimension 10.16 in x 10.16 in x 1.32 in (258 mm x 258 mm x 33.5 mm)
Antenna Weight 1.87 lb (0.85 kg)
