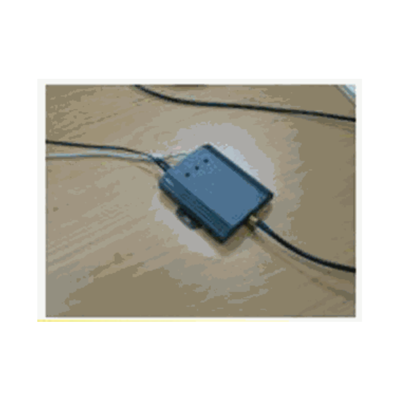

13.56 MHz HF Fixed RFID Reader Writer, 30cm Range, RS232 - Asset Track Pro

13.56 MHz HF Fixed RFID Reader Writer, 30cm Range, RS232 – Asset Track Pro

NFC-RIFD 13.56 MHz HF RFID fixed CE & FCC certifiedreader/writer, 30 cm range with ISO 15693 tags, CE & FCC certified, RS232 interface.

SKU: 233003tek Category:

Description

Overview

This is an advanced reader writer that can read multiple tags from a distance of up to 30 Cm under ideal conditions. The small form factor of this unit provides for easy installation and is a suitable hardware solution that can be integrated into Point of Sale (POS) Systems where multiple tag reads for long lines are required. Jewelers tags, Laundry management, Document tracing, etc.



Application Usage

  • Smart checkout multi tag solution



Specifications

  • Display: 3 Status LED’s
  • Power requirements: 12 V DC, 300 mA.
  • Communications Interface: RS232
  • Baud rate: 19,200 bps N, 8, 1
  • Frequency: 13.56 MHz.
  • Read Write Distance: 30 cm. with ISO 15693 compliant transponders
  • Technical Certificates: CE, FCC
  • Dimensions: L 345 mm × W 240 mm × H 20 mm
  • Weight: ~ g.
  • Housing: ABS



Operating Specifications

  • Waterproof and dustproof – IP40
  • Operating Temperature: -0 °C ~ 60 °C
  • Storage Temperature: -20 °C ~ 70 °C
  • Humidity: 10~90% relative



Others

  • Multi-Detection: Yes
  • Antenna Compatibility: ANT1015A for wall or desktop mounting
  • Antenna Connection: RP-SMA
  • Transponder Compatibility: Tag-it@HF, ISO 15693 Compliant Transponders
