Description
Overview

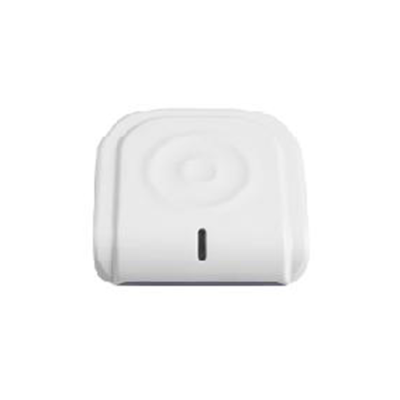

The high frequency desktop reader/writer is compatible with ISO14443A/B and ISO15693 protocols and is equipped with multiple optional interfaces including an RS232 serial interface, a USB interface and a TCP/IP Network interface or a WiFi wireless communication interface offered to meet different application needs. The reader/writer can be used in a wide range of smart card management application systems.
Key Features
- Reads and writes NFC labels
- Compatible with ISO14443A/B, ISO15693 and ISO18092 standards
- WiFi or TCP/IP (PoE) communication
- HID compatible
- Buzzer and a bi-colored LED indicator
Typical Applications
- Access Control
- Customer Benefit Programs
- Ticketing
- General Smart Card Management Systems
Technical Specifications
| Frequency | 13.56 MHz |
| Baud Rate | 9600 to 115200 bit/s(configurable, default rate: 9600) |
| Communication Interface(selectable) | RS232 |
| USB | |
| HID | |
| TCP/IP (PoE) + WiFi | |
| Supported Tag Protocol | ISO/IEC 14443-A/B, ISO/IEC 15693,ISO 18092 |
| Read Distance | ＞ 5cm (tag dependent) |
| Supported Card | NFC, Mifare S50/S70/Ultralight, Mifare Pro, AT88RF020,66CL160S, SR176, SRIX4K,I-code 2, TI RFID Tag-it HF-I |
| Size | 100 mm ×100 mm × 27 mm |
| Source | 5 V |
| Material | ABS |
| Operating Temperature | -10°C to 70°C |
Available Models*
| Model | Interface |
| 233018-T-X | TCP/IP interface (PoE) +WiFi |
| 233018-H-X | HID interface |
| 233018-U-X | USB interface |
| 233018-S-X | RS232 interface |
* The letter X above indicates the protocol required as follows:
| A | ISO14443A |
| B | ISO14443A/B |
| C | ISO15693 |
| E | ISO14443A/B and ISO15693 |
| N | NFC |
