Description
Overview

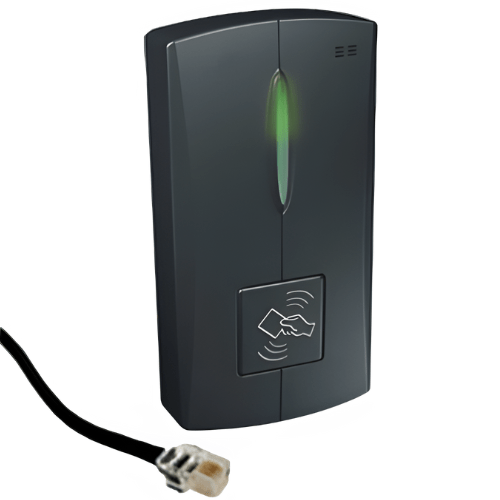

CN56X0B family is an access control reader compatible with 13.56MHz Proximity, MIFARE® Classic, MIFARE® PLUS, DESFire® EV1, and NFC technology. It features Wiegand, RS232/RS485 to work with the most brand controller on the market, and also supports TCP/IP with relay control to build PC server software remote access control solution.
Technical Specifications
| Operating Frequency | 13.56MHz |
| RFID Standard | ISO18092 NFC peer-to-peer |
| RFID Card Supported | Ultralight, MI fare® 1K/4K, MI fare® Pro/Prox, MI fare® Plus, DESFire ®EV1 and other ISO14443A, NFC tags (T2T, T4T) compatible cards, Sony Felica, ISO14443B on request |
| Power Supply | 9V DC (9-24V), <150mA |
| Reading Output Format | Wiegand 26, 34, 42, 50, 58 / Clock & Data 8, 10 (3 byte, 5byte, HEX, ASCI I) / ABA1, 2 |
| Keypad Output Format | 4bit, 8bit, Wiegand 26 |
| Dimension | 4.5669 in × 2.6378 in × 0.5512 in (116×67×14mm) |
| Operating Temperature | -20°C to 60°C/-4°F`140°F |
| Storage Temperature | -20°C to 60°C/-4°F`140°F |
| Operating Humidity | 0 to 95% relative humidity non-condensing |
| Reading Distance | 1.9685 in to 3.9370 in (50 to 100mm) (depending on antenna, transponder) |
| Writing Distance | 1.1811 in to 2.7559 in (30 to 70mm) (depending on antenna, transponder) |
