Description
Overview

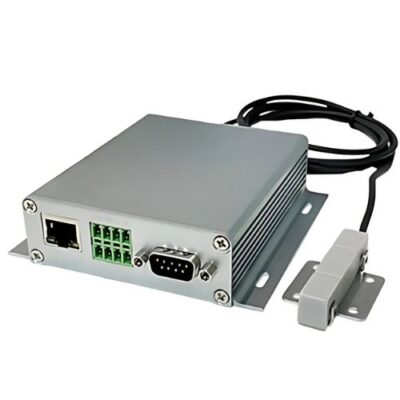

It is a RFID system specially developed for semiconductor manufacturing, which meets the world SEMI standard. The operating frequency is 134.2KHZ, and the HDX half-duplex data transmission mode is adopted, which is compatible with the CID carrier produced by Texas Instruments. It has excellent read and write reliability and environmental resistance, and is compatible with SECS instructions, which can be seamlessly connected to the existing semiconductor production equipment.
Technical Specifications
| Parameters | Details |
| Power Supply | DC 10-28V |
| Power Consumption | 2 W |
| Circuit Protection | Reverse connection, overvoltage and overcurrent protection |
| Communication Interface | RS232、RS485、RJ45、IO |
| Letter Of Agreement | SECS、MODBUS RTU |
| RS232 default Communication Baud Rate | 9600 NONE |
| Operating Temperature | −13°F to 158°F (-25℃ to 70℃) |
| Storage Temperature | −40°F to 185°F (-40℃ to 85℃) |
| Humidity | 5% to 95% non-condensed state |
| Drop Test | 47.24 in (1.2m free fall) |
| ESD Performance | Air discharge ±8KV, contact discharge ±6KV |
| Working frequency | 134.2KHz |
| Semiconductor standard | SEMI |
| RF standard | ISO11784/5 |
| CID carrier | RI-TRP-DR2B、RI-TRP-WR2B、RI-TRP-IR2B、RI-TRP-RR2B |
| Operating Voltage | 10-28V（Reverse connection, overvoltage and overcurrent protection） |
| Operating mode | HDX |
| Reading distance | 0 to 80mm |
| Write distance | 0 to 60mm |
| Protection class | IP54 |
| Mechanical dimensions | 4.11″ × 3.86″ × 1.11″ (104.4mm x 98mm x 28.3mm) |
| Weight | 7.59 oz (215 g) |
