| Processor |
Up to two 3rd Generation Intel Xeon Scalable processors with up to 24 cores per processor |
| Memory |
16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 2933 MT/s, supports registered ECC DDR4 DIMMs only |
| Storage Controllers |
Internal: PERC H345, PERC H355, HBA355i, PERC H745, PERC H755, S150; Internal Boot: Internal Dual SD Module, USB, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2x M.2 SSDs; External PERC (RAID): PERC H840; External HBA (non-RAID): HBA355e |
| Drive Bays |
Front bays: Up to 16 x 2.5 in SAS or SATA (HDD or SSD) max 122.88 TB; Up to 8 x 3.5 in SAS or SATA (HDD or SSD) max 128 TB; Up to 8 x 2.5 in SAS or SATA (HDD) max 61.44 TB |
| Power Supplies |
600W Platinum Mixed Mode (100 to 240Vac or 240Vdc) hot swap redundant; 800W Platinum Mixed Mode (100 to 240Vac or 240Vdc) hot swap redundant; 1100W -48Vdc hot swap redundant (works with -48Vdc to -60Vdc power input) |
| Embedded Management |
iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module |
| Integrations and Connections |
OpenManage Integrations: BMC Truesight, Microsoft System Center, Red Hat Ansible Modules, VMware vCenter and vRealize Operations Manager; OpenManage Connections: IBM Tivoli Netcool or OMNIbus, IBM Tivoli Network Manager IP Edition, Micro Focus Operations Manager, Nagios Core, Nagios XI |
| Ports |

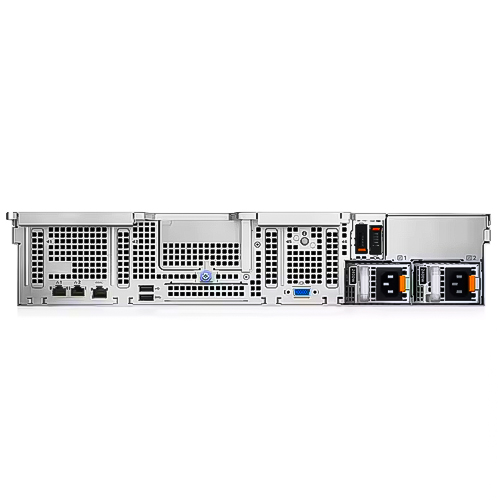

Front: 1 x Dedicated iDRAC (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA; Internal: 1 x USB 3.0 (optional); Rear: 1 x USB 2.0, 1 x Serial (optional), 1 x iDRAC ethernet port, 1 x USB 3.0, 1 x VGA |
| PCIe Slots |
3 x PCIe Gen4 slots + 1 x PCIe Gen3 slot; 3 x16 Gen4 low profile; 1 x8 Gen3 (x4 lane) low profile |
| Form Factor |
2U Rack Server |
| Bazel |
Optional LCD bezel or security bezel |
| CPU Frequency |
2.1GHz |
| Dimensions |
Height: 3.41 in (86.8 mm); Width: 18.97 in (482 mm); Depth: 28.72 in (721.69 mm) with bezel or 27.00 in (685.78 mm) without bezel |
