Description
Overview

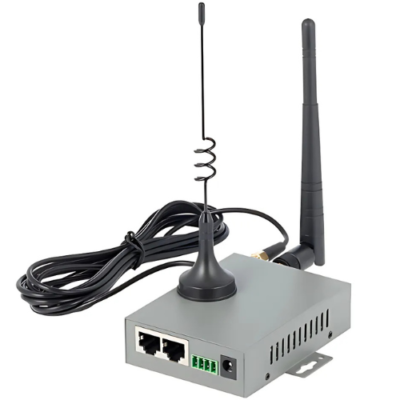

Asset Track Pro 4G LTE IoT Router with RS485 adopt industrial 32-bit Communications Processor, two Ethernet ports, dedicated serial port (RS232/RS485), Wi-Fi interface, embedded LEDE Linux Operating System.
Features
- Full bands 4G LTE, compatible with 3G/2G WCDMA GPRS, EDGE
- Port flux detection, Link real-time monitoring
- Support APN and VPDN private network access
- Serial port offer Data Transfer Unit (DUT) function and support Modbus protocol
- Support multi online trigger ways, including ring, SMS, or data trigger
- Support QOS, UPnP protocol, Port forwarding, UDP broadcast relay
Technical Specifications
| Standard Power | DC 12 V and 1 A |
| CPU | 560 MHz |
| Flash/RAM | 128 Mb or 1024 MB |
| Shell | Metal Plate Shell |
| Relative Humidity | < 95 % No Coagulation |
| Approval | CCC, CE |
| Operating Temperature | -22 °F to 167 °F (30 °C to 75 °C) |
| Storage Temperature | -40 °F to 185 °F (40 °C to 85 °C) |
| Dimension | 3.74 in × 2.76 in × 0.98 in (9.5 cm × 7.0 cm × 2.5 cm) |
| Weight | 7.41 oz (210 g) |
