Description
Overview

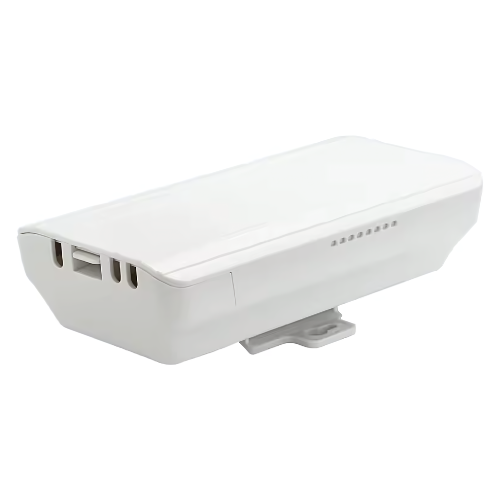

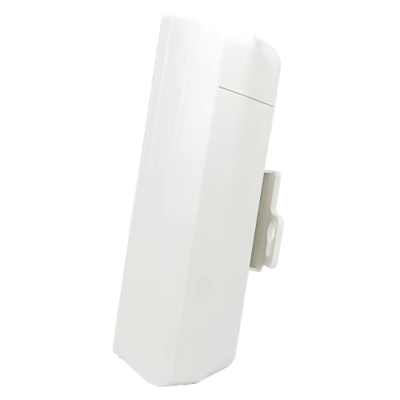

4G LTE Outdoor IoT Router for BLE Beacon with Waterproof Design – Asset Track Pro is mainly used for communicating with devices with BLE function, and uploading device data to the cloud, or download cloud data to device. KG01 gateway support cellular (3 G or 4 G), Wi-Fi, Wi-Fi hopping, or ethernet network connection. It can be powered by DC 5 V, or POE (802.3af). It supports Bluetooth 5.0 or 4.2or 4.1 or 4.0 and newer, e.g. BLE sensor, smart wristband, smart heart rate band.
Technical Specifications
| Material | Industry use plastic |
| Scanning Ability | > 260 beacons per second |
| Indicator | RGB LED indicator |
| Wireless Distance | BLE 4.0 or BLE 4.1 or BLE 4.2 or BLE 5.0 up to 0.093 mi (150 m) The working distance will be affected by surrounding environment) |
| Transmitting Way | Cellular (USB dongle for 3G/4G), ETH RJ45, Wi-Fi, Wi-Fi hopping |
| Transmitting Protocol | HTTPS MQTT |
| Waterproof | IP53 with smart outdoor design |
| BLE Chipset | Nordic nRF52 series |
| Power Supply | DC 5 V or POE |
| Weight | 5.29 oz (150 g) |
| Size | 6.81 in x 3.54 in x 1.77 in (173 mm x 90 mm x 45 mm) |
| Working Temperature | -40 °F to 158 °F (-40 °C to +70 °C) |
| Storage Temperature | 50 °F to 77 °F (10 °C to +25 °C), ≤ 65 % RH |
