Description
Overview

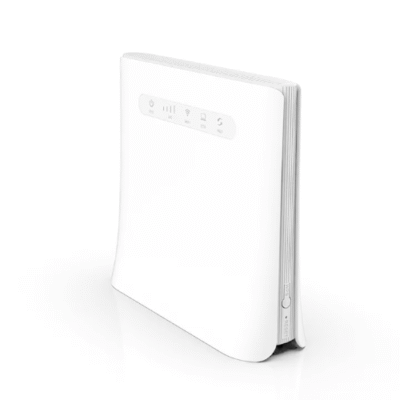

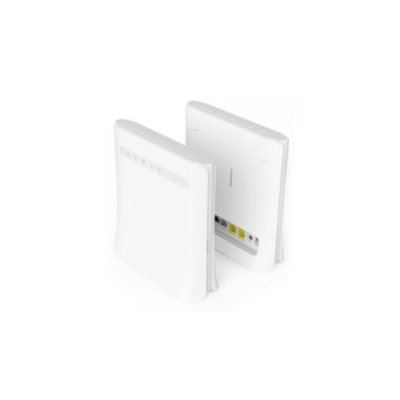

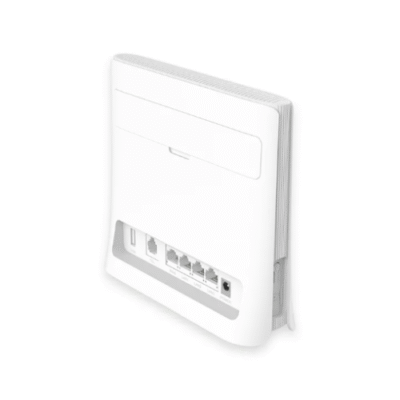

Asset Track Pro’s provides 4G Wireless Cellular Modem with Dual-Band Wi-Fi VoLTE Support superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and 4G voice services to end-users. It converts high-speed LTE FDD, TDD signal to Wi-Fi signals on the local area network (LAN) and Wireless LAN (WLAN). Wireless and wired devices which include mobile phones, laptops, tablets, printers, IP cameras and other smart devices, can access it simultaneously.
Features
- 1200 M Dual Band Wi-Fi
- 300 m2 Coverage, Ideal for Small to Mid-Size Home
- Support VoLTE
- 2600 mAh Built-in Battery (Optional)
- Share the Wi-Fi
- Insert SIM Card of Mobile Home Directly
Technical Specifications
| Main Chipset | MT 7628 DAN 32-bit MIPS 24K Ec 580 MHz SoC |
| Flash | 16 MB SPI Flash |
| RAM | 64 MB DDR 2 (MT7 628 DAN) |
| 2.4 GHz Wi-Fi | MT7 628 DAN |
| 5 GHz Wi-Fi | MT7 613 BEN |
| 4G LTE | ZX 297520 V 3 E, 3 GPP Release 9, CAT 4 modem |
| SIM Card | 1 x SIM, USIM Slot, 1.8 V, 3.0 V 2 FF USIM |
| Ethernet | 4 x RJ 45 10, 100 Mbps Ethernet Port, Adaptive, Auto MDX (1 WAN, 4 LAN) |
| Voice | 1 x RJ 11 VoLTE Telephone Port (Optional) |
| USB | 1 x USB 2.0 Host Port (For Debug Purpose Only) |
| Battery | 2600 mAH Li-ion Backup Battery (Optional) |
| Power Supply | 1 x Power Adapter Power Input 100 V to 240 V AC 50 Hz, 60 Hz, Power Output 12 V, 1 A DC Power |
| 1 x Standard Power Input Jack, 12 V DC | |
| Power Button | Power ON, OFF Switch Button |
| Reset | 1 x Pinhole Reset Button. Long press 3-second to activate factory settings restore |
| WPS | 1 x WPS Button |
| LED Indicators | 1 x Power LED indicator |
| 1 x WPS, WLAN LED indicator | |
| 1 x LAN LED Indicator | |
| 1 x LTE Internet LED indicator | |
| 3 x Cellular Signal Strength LED Indicator | |
| Operating Humidity | 5% to 95% (non-condensing) |
| Operating Temperature | -4 ℉ to 122 ℉ (-20 ℃ to 50 ℃) |
| Storage Temperature | -13 ℉ to 158 ℉ (-25 ℃ to 70 ℃) |
| Dimensions | 6.69 in x 2.17 in x 6.06 in (170 mm x 55 mm x 154 mm) |
| Weight | Approx. 0.75 lb (342 g) |
