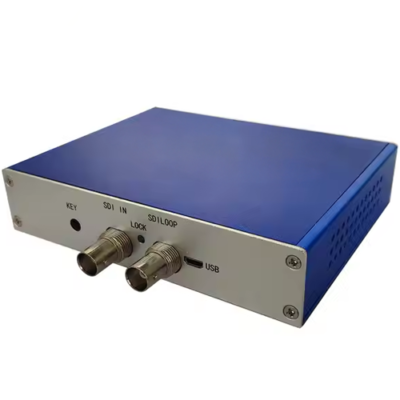

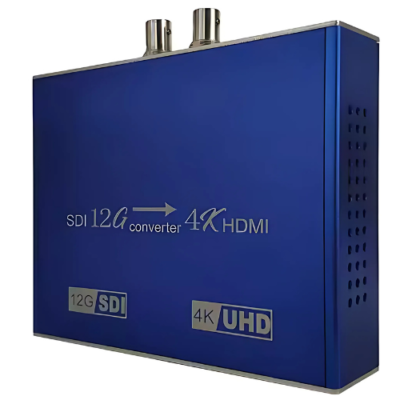

Description
Features
- 12G SDI Support loop out
- 4K HDM1 HD output
- DC 5 V to 12 V Power Adapter
- KEY switch USB serial port
Technical Specifications
| Output Signal | HDMI video signal |
| Connector | HDMI |
| Signal Amplitude | 800 mV ± 10 % |
| Audio | Multi channel 48 K, 96 K |
| Differential Gain | HTTP Web |
| Output Signal | 1.5 G/3 G/6 G/12 G |
| Bit Rate | 270 Mbps to 12 Gbps |
| Power | 5 V to 12 V |
| Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Size | 5.19 in × 4.05 in × 1.10 in (13.2 cm × 10.3 cm × 2.8 cm) |
