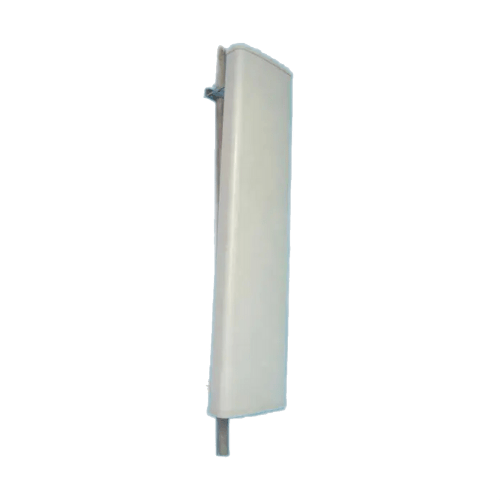

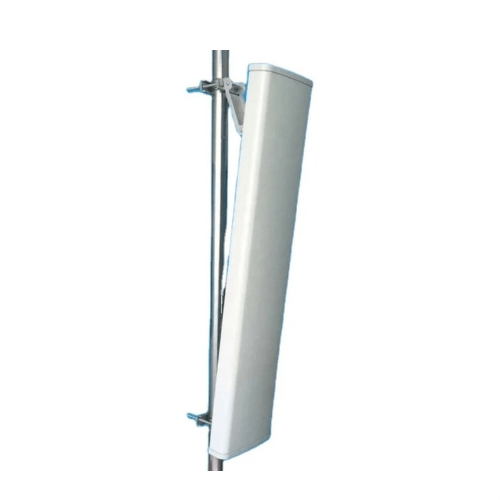

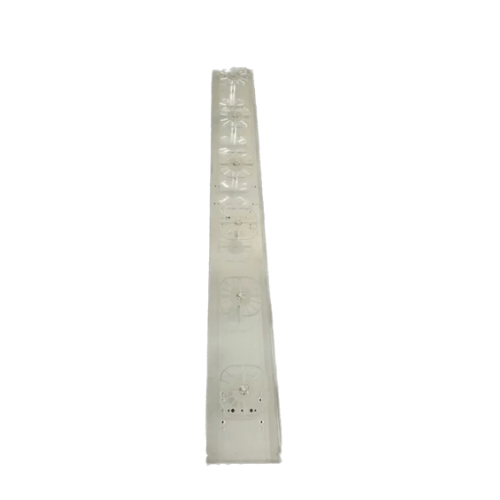

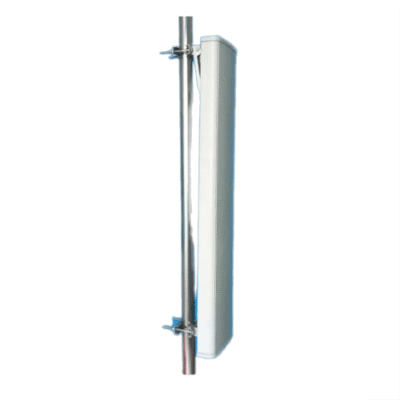

915 MHz Directional RFID Antenna with 15 dBi Gain, 902 MHz to 928 MHz, 120° Beam Width – Asset Track Pro

High-gain, 915 MHz, 902 MHz to 928 MHz directional RFID antenna with optimized dimensions, vertical or horizontal placement, and full-day operation.

SKU: ATPANT-248 Category:

Description

Features

  • High gain
  • Full day working
  • Optimized dimension
  • Vertical or horizontal



Technical Specifications

Frequency Range 902 MHz to 928 MHz
Polarization Vertical
Gain 15 dBi
Half Power Beam Width H 120° V 7°
Front To Back Ratio ≥18 dB
Input Impedance 50 Ω
VSWR ≤ 1.5
Side Lobe Suppression For First Side Lobe Above Horizon 15 dB
Maximum Input Power 400 W
Lightning Protection DC Ground
Input Connector Type N Female
Radome Material UPVC
Radome Color Gray
Mechanical Tilt 0° to 10°
Rated Wind Velocity 60 m per s
Waterproof Standard IP67
Mounting Way Pole holding
Operating Temperature -40 °F to 140 °F (- 40 °C to 60 °C)
Mounting Hardware 1.4 in to 3.5 in (35 mm to 90 mm)
Dimensions Mm 86.6 in x 11.02 in x 4.9 in (2200 mm x 280 mm x 125 mm)
Antenna Weight 31.9 lb. (14.5 kg)
