Description
Overview

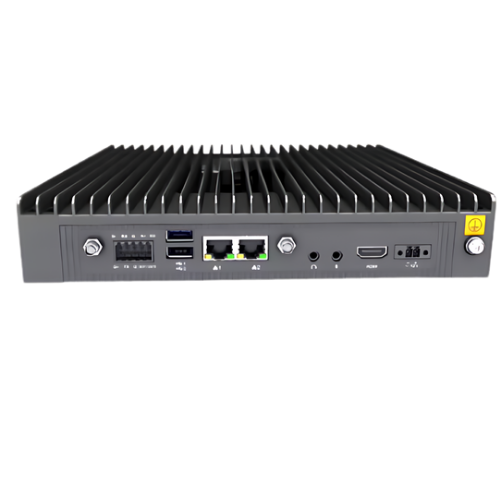

Asset Track Pro’s AI Edge Station is designed for edge applications. It features superb computing performance in a compact size, strong environmental adaptability, easy maintenance, and cloud-edge collaboration, and can be widely deployed at the edge.
Technical Specifications
| AI Chip | Ascend 310 |
| AI Computing Power | AI Computing Power |
| Memory | 4 GB or 8 GB LPDDR4X, total bandwidth 51.2 Gbit/s |
| Encoding/Decoding Capability | H.264 hardware decoding, 16-channel 1080p 30 FPS (2-channel 3840 x 2160 at 60 FPS)
H.265 hardware decoding, 16-channel 1080p 30 FPS (2-channel 3840 x 2160 at 60 FPS) H.264 hardware encoding, 1-channel 1080p 30 FPS H.265 hardware encoding, 1-channel 1080p 30 FPS JPEG decoding 1080p 256 FPS, encoding 1080p 64 FPS, maximum resolution 8192 x 4320 PNG decoding 1080p 24 FPS, maximum resolution 4096 x 2160 |
| Port | Network 2 x GE RJ45 ports
Other I/O ports 1 HDMI port 1 audio input port and 1 audio output port 0.14 in (3.5 mm) stereo ports 2 external USB 2.0 ports and 1 internal USB 2.0 port (all Type-A) |
| Working Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Size | Without drives 1.77 in x 9.25 in x 8.66 in (45 mm x 235 mm x 220 mm)
With drives 1.77 in x 13.98 in x 8.66 in (45 mm x 355 mm x 220 mm) |
