Description
Technical Specifications

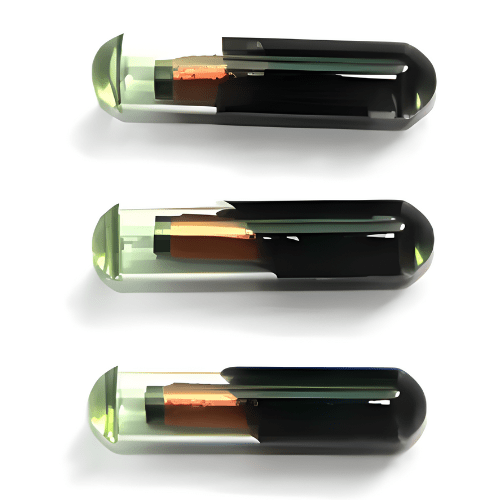

| Material | Internal lead free and non-toxic materials, external glass plus bio layer |

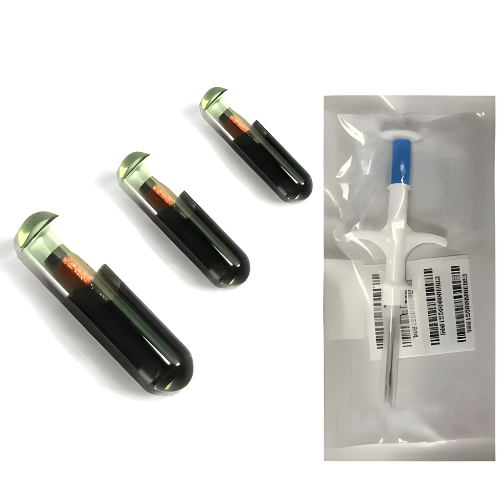

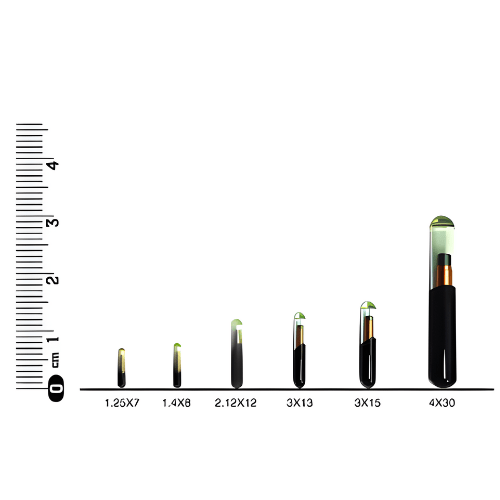

| Specification | 0.27 in x 0.05 in (7 mm x 1.25 mm), 0.31 in x 0.05 in (8 mm x 1.4 mm), 0.47 in x 0.08 in (12 mm 2.12 mm) 0.51 in x 0.12 in (13 mm x 3 mm), 0.59 in x 0.12 in (15 mm x 3 mm), 1.18 in x 0.16 in (30 mm x 4 mm) |
| Communication Mode | FDX-B or FDX-A |
| Information Transfer Protocol | In line with ISO 11784, 11785, 15693 international agreements |
| Storage Type | Read, write, read only |
| Operating Temperature | -4 °F to 176 °F (-20 °C to 80 °C) |
| Storage Temperature | -40 °F to 176 °F (-40 °C to 80 °C) |
| Working Frequency | 125 KHz or 134.2 KHz or 13.56 MHz |
| Chip | EM 4305, F 08 |
| Number Of Reading And Writing | 100,000 times |
| Reading And Writing Distance | Not less than 0.79 in (2 cm) |
| Chip Type | Can package low frequency, high frequency chips |
| Standards Compliant | ISO 11784, 785 |
| Application Areas | Bio-identification, applied to animal management, species reproduction, epidemic prevention, quarantine, cherish species tracking, etc. |
