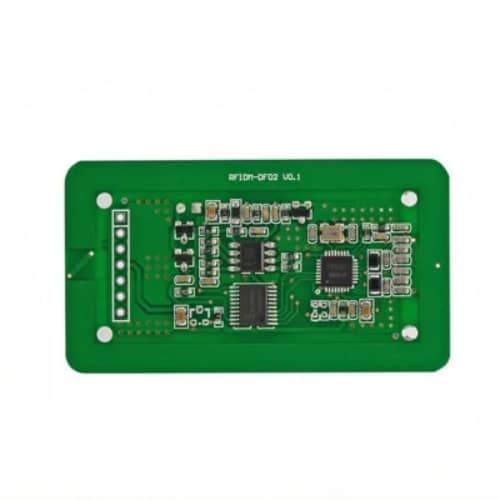

Asset Track Pro 125 KHz And 13.56 MHz Of Dual Frequency RFID Reader

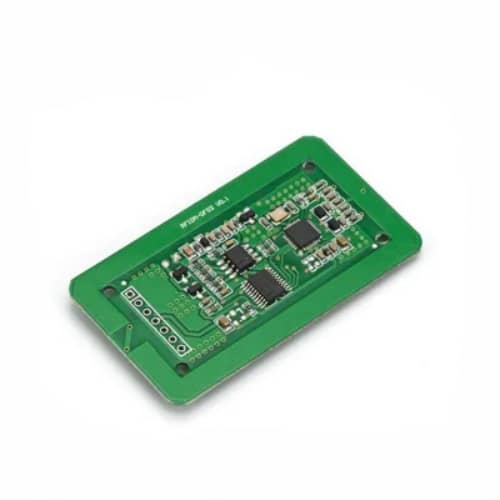

Asset Track Pro 125 KHz And 13.56 MHz Of Dual Frequency RFID Reader - Image 2

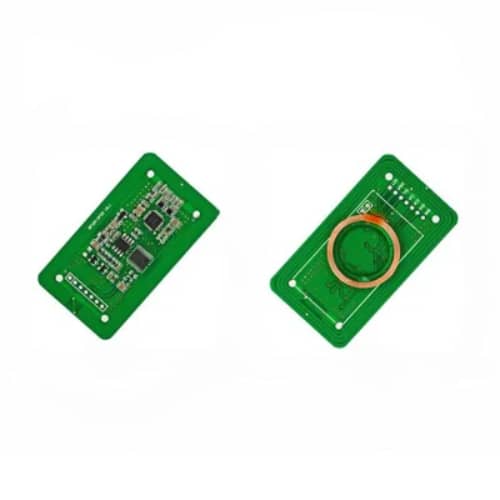

Asset Track Pro 125 KHz And 13.56 MHz Of Dual Frequency RFID Reader - Image 3

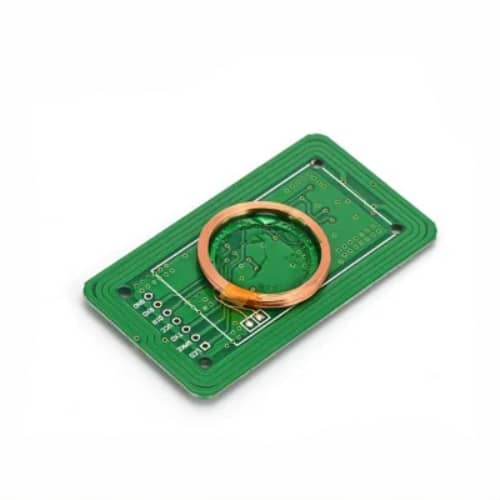

Asset Track Pro 125 KHz And 13.56 MHz Of Dual Frequency RFID Reader - Image 4

Asset Track Pro 125 KHz And 13.56 MHz Of Dual Frequency RFID Reader

Dual frequency RFID reader module supporting 125 KHz & 13.56 MHz, with low power dissipation, UART interface, and compact size of 2.44 in x 1.35 in.

SKU: ATPLMOD-214 Category:

Description

Features

  • Support 125 KHz and 13.56 MHz
  • Dual frequency antenna integration all in one.
  • ≤ 30 uA of Low power dissipation
  • Support serial port TTL communication
  • Small size, 62 mm x 34.5 mm
  • UART interface



Technical Specifications

Frequency 125 KHz and 13.56 MHz
Support Card EM card and TK card
Power Supply 5 V and 3.3 V
Reading Distance 0.39 in to 3.93 in (1 cm to 10 cm)
Antenna External
Protocol ISO 11784 or ISO 11785, ISO 14443
Working Temperature -40 °F to 185 °F (-40 °C to 85°C)
Storage Temperature -58 °F to 212 °F (-50 °C to 100°C)
Dimension 2.44 in x 1.35 in (62 mm x 34.5 mm)
