Description
Overview

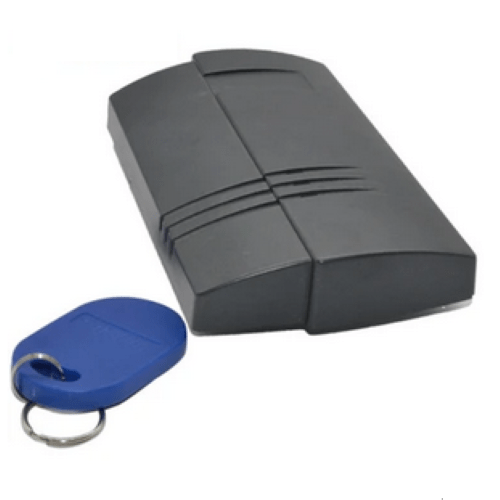

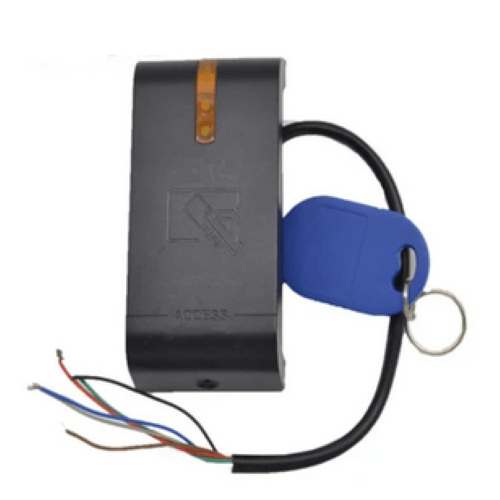

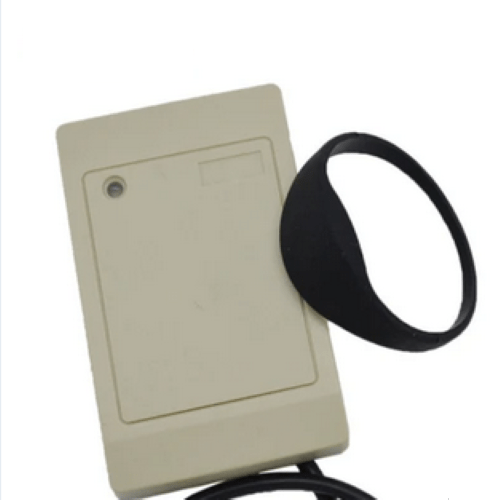

Asset Track Pro 125 kHz Em Card Lf RFID Reader is a USB Rfid reader for access control, it can be 125 KHz or 13.56 MHz as your demand, output format can be Wiegand 26 or 34; RS232; RS485 , popular used in enterprises management, housing management etc.
Technical Specifications
| Frequency | 125 KHz or 13.56 Mhz |
| Supporting Card | EM 4100 card serial number, ISO or IEC14443A or B, ISO15693 & ISO18092 |
| Read Distance | More than 3.15 in (8 cm) (Depending on label size and surroundings) |
| Interface | Wiegand 26 or 34, RS232, RS485, ABA (TVS transient pulse protection) |
| Power Supply | DC 9 V to 12 V |
| Current | Less than 50 mA |
| Working Distance | More than 109.36 Yard (100 m) (Using the national standard Cat5e network cable, test results without interference) |
| Protection Level | IP65 epoxy resin embedment |
| Operating Temperature | 14 °F to 158 °F (-10 °C to 70 °C) |
| Storage Temperature | -4 °F to 176 °F (-20 °C to 80 °C) |
| Humidity | 0 % to 95 % |
| Dimension | 4.37 in x 2.76 in x 0.55 in (111 mm x 70 mm x 14 mm) |
| 125KHz or ISO7815 | EM4100, H4100, EM4200, TK4100, EM4102, H4102, EM4105, EM4305, EM4450, ATA5577, Hitag2, HitagS256 |
| ISO or IEC 14443 A, ISO or IEC 14443 B & ISO or IEC 15693 | M 1K S50, MF1 S50, M 4K S70, MF1 S70, M Plus S2K, M Plus S4K, Ntag203, Ultralight, Ultralight c, DesFire EV1 8K (MF3 IC D81), DesFire 4K (MF3 IC D40), DesFire EV1 4K (MF3 IC D41), SRI512, I.code SLI SI2, I.code 2, I.code SLI-S, I.code SLI-L, Tag-IT Ti2048, Tag-IT Ti256 |
