Description
Overview

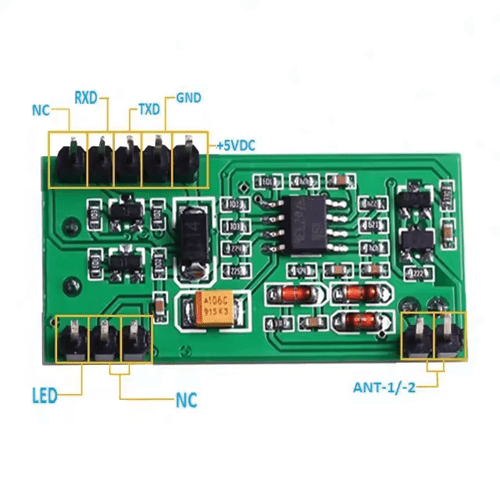

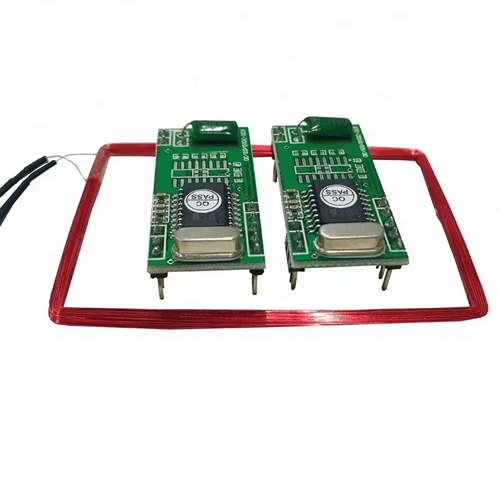

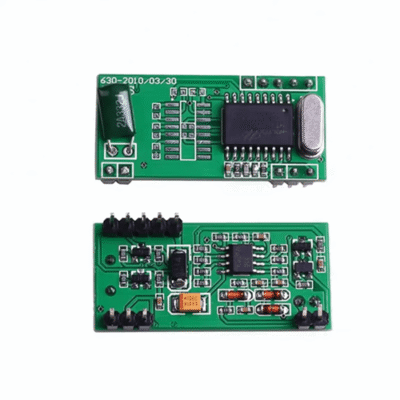

Asset Track Pro 125 KHz Support Table PC Reader Module is a 125 KHz read-only module for EM 4100 or TK 4100 125 KHz cards, which can read and output CSN card numbers. It has the option of Wiegand 26, RS 232, and TTL output formats.
Technical Specifications
| Frequency | 125 KHz |
| Support Card | EM 4100, TK 4100 or EM 4200 |
| Power Supply | DC 5 V |
| Interface | Weigang26, TTL, RS232 |
| Reading Distance | > 3.14 in (8 cm) |
| Antenna | External |
| Working Temperature | 14 °F to 158 °F (-10 °C to 70 °C) |

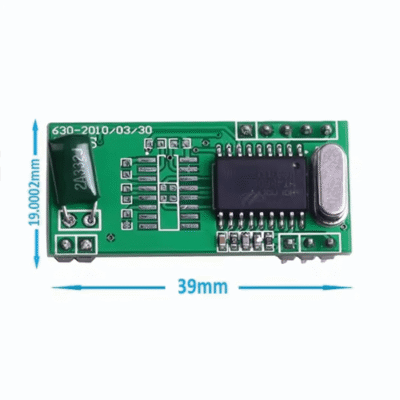

| Dimension | 1.54 in x 0.75 in x 0.35 in (39 mm x 19 mm x 9 mm) |
| Weight | 2.12 oz (0.06 kg) |
