Description
Overview

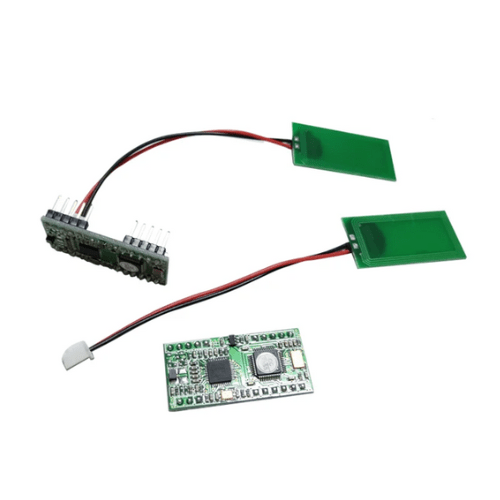

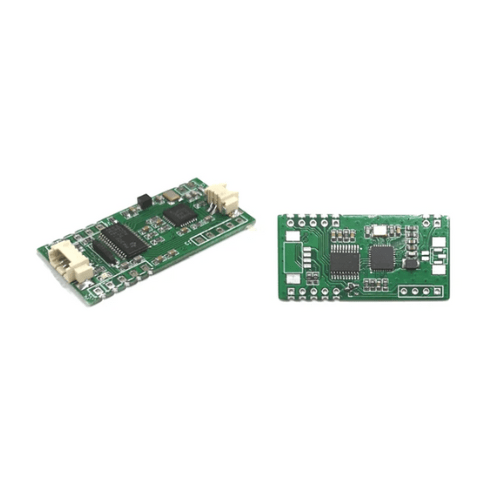

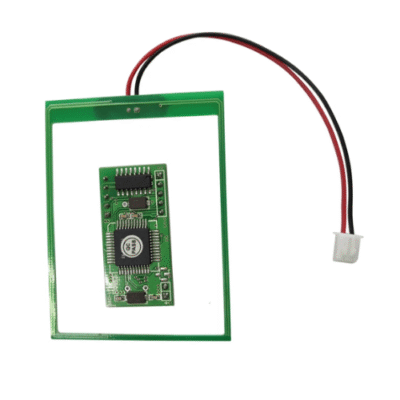

Asset Track Pro 13.56 MHz Read or Write RFID NFC Reader Module. We will offer free DEMO and SDK for testing and programming. It adopts a highly integrated special card reading chip, advanced watchdog, and voltage monitoring circuit project design and features a high degree of integration, strong anti-interference ability, small size, and more stable performance.
Features
- Wide Frequency Support
- Multiple Interface Options
- Extended Reading Distance
- Compact Size
- External Antenna Compatibility
- Wide Range of Supported Chips
- Flexible Power Supply
Technical Specifications
| Frequency | 13.56 MHz |
| Interface | TTL, RS 232, RS 485 |
| Protocol | ISO14443A |
| Reading Distance | 0.78 in X 5.51 in (2 cm X 14 cm) |
| Power Supply | DC 3.3 V to 5 V |
| Standard | ISO 14443-A or B, ISO 18092 |
| Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Dimension | 1.53 in X 0.74 in X 0.35 in (39 mm X 19 mm X 9 mm) |
| Weight | 17.63 oz (500 g) |
