Description
Features
- Fully enclosed design, the whole PC is dustproof
- Seamless design flat bezel, front panel IP 65 waterproof
- Aluminum alloy shell, good mechanical properties, excellent heat dissipation
- Industrial LCD panel, wide viewing angle, high nits, true color
- Adopt multi-points PCAP touch panel, highly sensitive and fast response. Covered with 0.078 in (2 mm) tempered glass for vandal proof
- High performance motherboard, 7 x 24 continuous operation
Technical Specifications
| CPU | Intel® Celeron J4125, Quad core, 2.4 GHz, Fanless |
| Memory | 4 G DDR4 (8 G optional) |
| Hard Drive Capacity | 64 G SSD |
| Hard Drive Optional | SSD: 32 G, 128 GB, 256 GB HDD: 500 GB, 1 TB |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High-Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI&Blue tooth or 4 G LTE Optional |

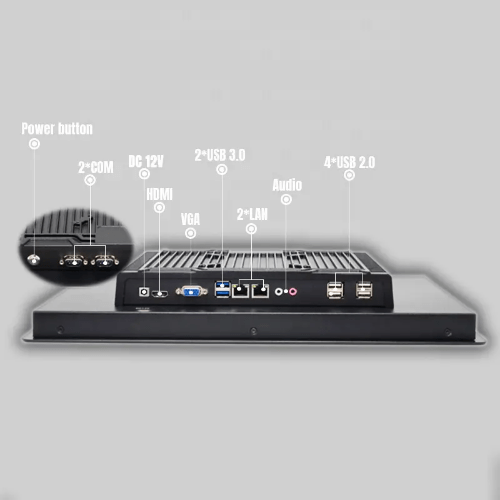

| I/O Interface | 2xUSB 3.0, 4xUSB 2.0, 2xCOM RS232 1xVGA or HD-MI or RJ45 or Audio OUT or MIC IN or POWER DC or Phoenix terminal |
| Operation System | Support Win 10 or 11, Linux, Ubuntu, Debian, etc. |
| Panel size | 15 in (3.81 cm) |
| Resolution | 1024 pixels x 768 pixels |
| Aspect ratio | 16:9 |
| Support Color | 16.7 M colors |
| Brightness | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio | 1000:1 |
| View angle | 80° or 80° or 80° or 80° (R or L or U or D) |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2 ms |
| Luminousness | 90% |
| Surface Hardness | 7 hrs |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch optional) |
| External Power Supply | AC 100 V to 240 V |
| Working voltage | DC 12 |
| Power consumption | ≤25 W |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 2.95 in x 2.95 in or 3.93 in x 3.93 in (75 mm x 75 mm or 100 mm x 100 mm) |
| IP grade | Front panel IP 65 waterproof |
