Description
Overview

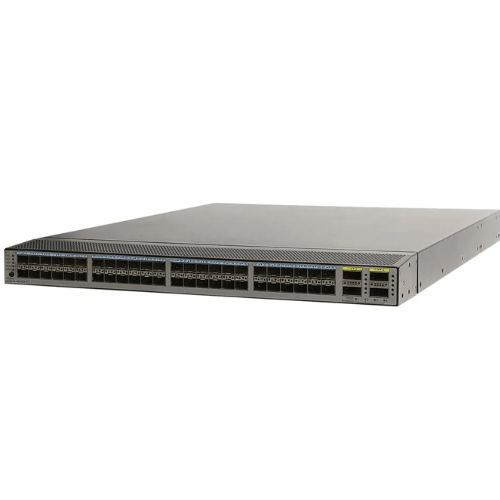

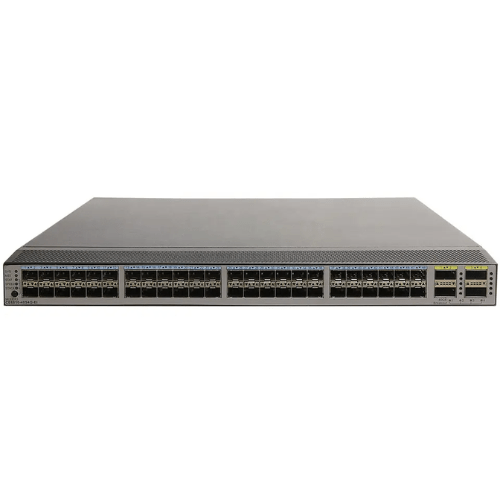

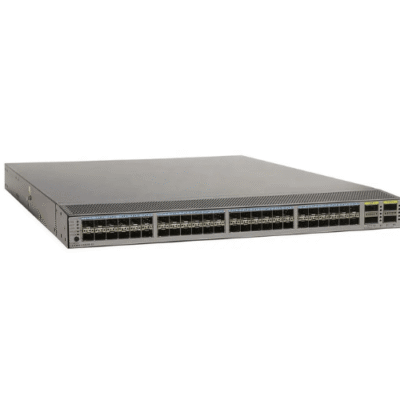

Asset Track Pro Data Center Ethernet Switch is designed for cloud-oriented networks, offering high-performance, high port density, and low latency. It supports 10, 25, or 50 GE access ports and 40, 100, or 200 GE uplink ports. It includes advanced features, high-performance stacking technologies, and flexible airflow capabilities. It’s suitable for both core and aggregation layers, enabling scalable, simplified, open, and secure enterprise networks.
Features
- Deep Buffering
- Intelligence with simplified operations
- Interoperability
Technical Specifications
| Software Version | V 100 R 003 C 10 and later |
| Fixed 10 GE interfaces | 48 x 10 GE SFP+ |
| Fixed 40 GE interfaces | 4 x 40 GE QSFP+A 40 GE interface can be split into four 10 GE interfaces |
| Switching Capacity | 1.28 Tbit / s |
| Maximum Power Consumption | 238 W |
| Forwarding Rate | 960 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Dimensions (W x D x H) | 17.4 in x 23.62 in x 1.72 in (442 mm x 600 mm x 43.6 mm) |
| Weight (fully loaded) | 22.9 lb (10.4 kg) |
