Description
Overview

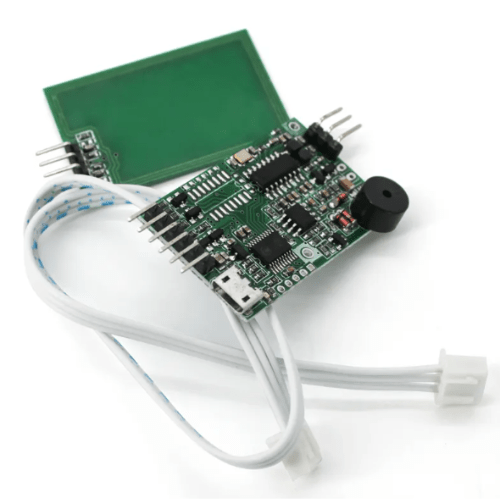

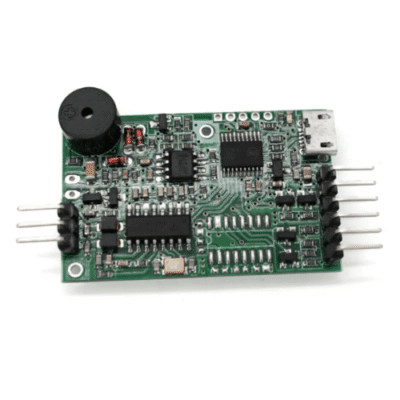

Asset Track Pro Double Frequency RFID Reader Module 13.56 MHz and 125 KHz. Compact size, SMT mounting, easy to integrate into the advertising machine, electronic class, integrated LCD screen, electronic door lock, access control, attendance, and other terminal equipment.
Features
- Operating Frequency
- Protocol Support
- Communication Interfaces
- Status Indicators
- Wide Operating System Support
- Power Supply Flexibility
- Versatile Application
Technical Specifications
| Operating Frequency | 125 KHz and 13.56 MHz |
| Power Supply | Supports 3.3 V to 5.5 V |
| Current Consumption | Less than 100 mA |
| Reading Range | 0 in to 1.96 in (0 mm X 50 mm) |
| Operating Humidity | Relative Humidity of 0% RH to 95% RH |
| Protocol | ISO 14443-A |
| Temperature | 14 °F to 158 °F (-10 ℃ to 70 °C) |
| Dimension | 1.65 in X 1.06 in X 0.15 in (42 mm X 27 mm X 4 mm) |
| Weight | 0.35 oz (10 g) |
