Description
Overview

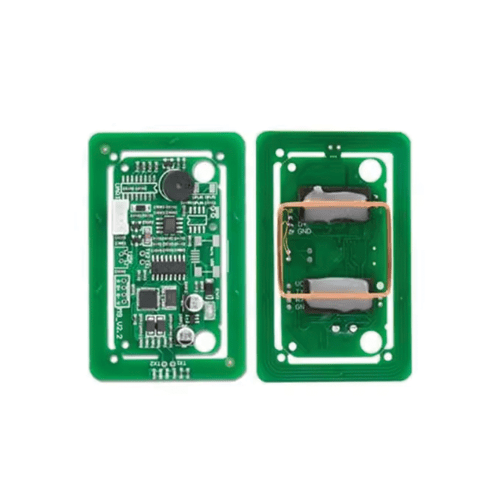

Asset Track Pro Dual Frequency RFID Reader Module of 125 KHz is a dual-frequency card reading module integrating two frequencies of 125 KHz or 13.56 MHz. It can be used alone or developed twice. Used to read contactless (RFID) IC cards, ID cards, CPU cards, and ID card physical serial numbers. Optional interfaces include the miniUSB interface, the RS 232 serial port, the TTL serial port, and the 485 interface. Users do not need to know about any RC 523 or other radio frequency chips. complex control commands, and there is no need to understand the complex keys and access control issues of the second-generation ID card. You only need to bring the card close to the sensing range of the card reading module to immediately read the physical serial number of the card. You can also use commands to read Mifare-designated sector content, suitable for the development of card identification products such as access control, parking lots, multi-card applications, and smart terminals.
Features

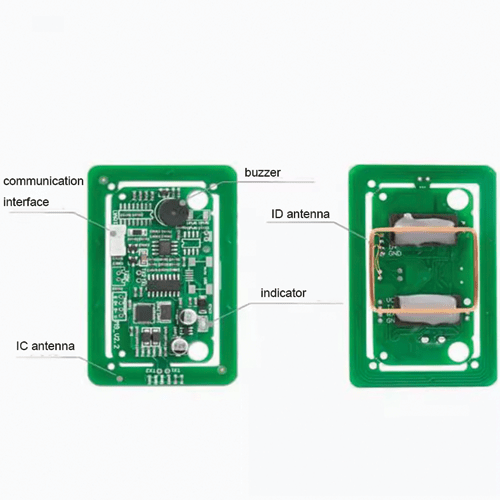

- Small size, easy install, integrated antenna, detachable
- Built-in CPU, auto card number read, output to PC
- Seamless system connection, no extra drivers needed
- Voltage range 3 V to 5 V
- Humanized design with buzzer and LED indicators
- Full functions, supports IC or ID or CPU ID card reading
Technical Specifications
| Frequency | 125 KHz and 13.56 MHz |
| Baud Rate | 9600 bps |
| Usage | S 50, S 70, F 08, EM or TK ID Card |
| Power Supply | DC 3 V to 5 V |
| Reading Distance | 1.96 in to 3.14 in (5 cm to 8 cm) |
| Read Card Time | < 100 ms |
| Working Humidity | 0 % RH to 95 % RH |
| Work Current | 60 mA |
| Protocol | ISO 14443-A |
| Working Temperature | 14 °F to 158 °F (-10 °C to 70 °C) |

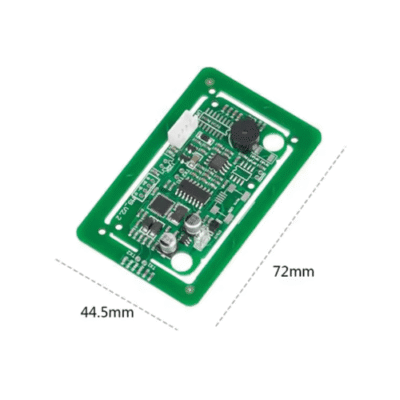

| Dimension | 1.77 in x 2.83 in x 0.04 in(45 mm x 72 mm x 1.2 mm) |
| Weight | 9.00 oz (0.25 kg) |
