Description
Overview

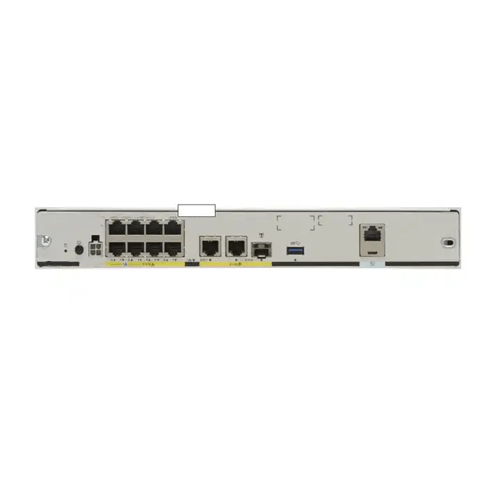

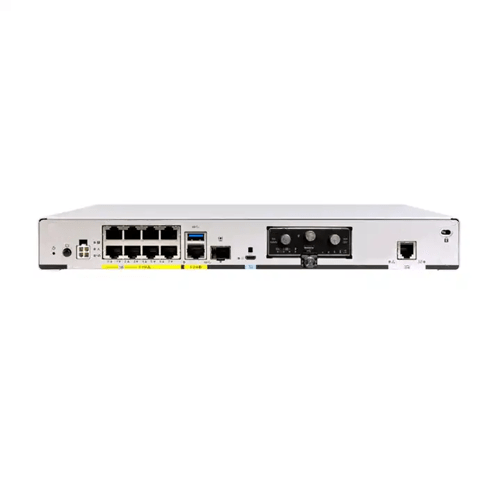

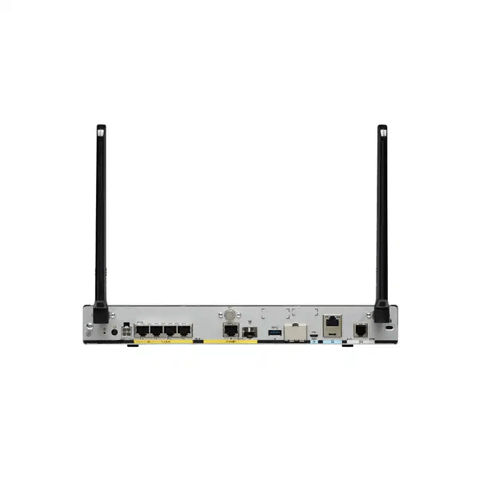

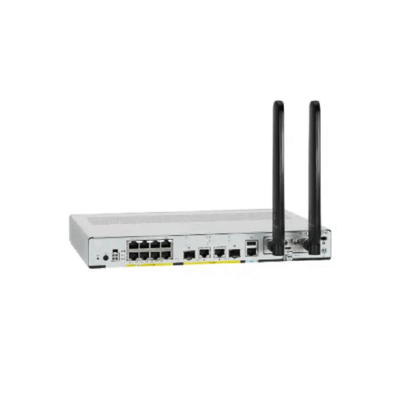

Asset Track Pro enterprise router integrated services router (ISRs) delivers IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. ISR is ideal for small and medium enterprise branch offices. ISR 1100 8 Ports Dual GE WAN Ethernet Router, delivering 1 WAN port and 8GE LAN ports.
Technical Specification
| Max. LAN Data Rate | 1000 Mbps |
| With Modem Function | Yes |
| Wi-Fi Supported Frequency | 2.4G and 5G |
| 2.4G Wi-Fi Transmission Rate | 600 Mbps |
| Standards And Protocols | Wi-Fi1.77lb(802.11 g),Wi-Fi802.11b,Wi-Fi802.11n,Wi-Fi802.11ac,Wi-Fi802.11a |
| Encryption Type | WPA2-PSK, WPA-PSK |
| LAN Ports | 8 |
| Supports WDS | Yes |
| Supports WPS | No |
| Wi-Fi Transmission Standard | 802.11 ac |
| Wired Transfer Rate | 10 Mbps or 100 Mbps or 1000 Mbps |
| Private Mold | No |
| Function | Firewall, QoS, VPN |
| WAN Ports | 1 x10 Mbps or 100 Mbps or 1000 Mbps |
| 5G Wi-Fi Transmission Rate | 1000 Mbps |
| GE | 1 |
| GE or SFP combo | 1 |
| PoE | 4 |
| PoE+ | 2 |
| Integrated USB 3.0 AUX or console | Yes |
| Dimensions (H x W x D) | 1.6 in x 12.7 in x 9 in (42 mm x 323 mm x 230 mm) |
| Weight | 5.5 lb (2.5 kg) |
