Description
Features
- Hot swap module replacement
- LDAP support, ISL support, Syslog support, IPv6 support, IP address filtering, LUN zoning, EZ Switch
- Ports on Demand
- Quality of Service (QoS), RADIUS support
- IPSec passthrough, role based access control
- Management Information
- Base (MIB), Forward Error Correction (FEC), Transparent (N_Port ID Virtualization – NPIV) mode support
- Registered State Change
- Notification (RSCN) support, Diagnostic Function, Secure Copy (SCP), Role-Based Access Control (RBAC), Fibre Channel
- Authentication Protocol (FCAP)
Technical Specification

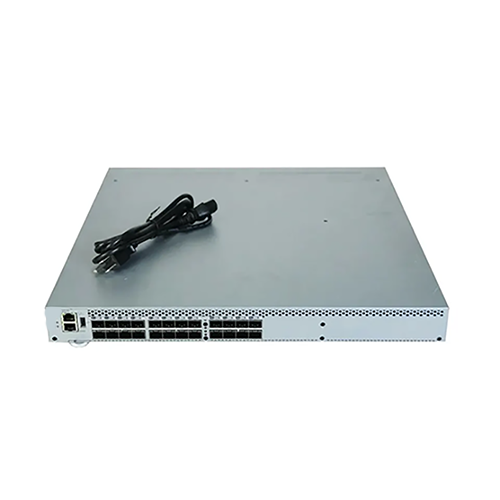

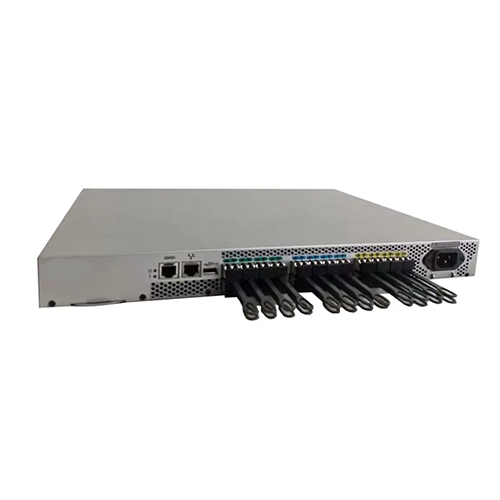

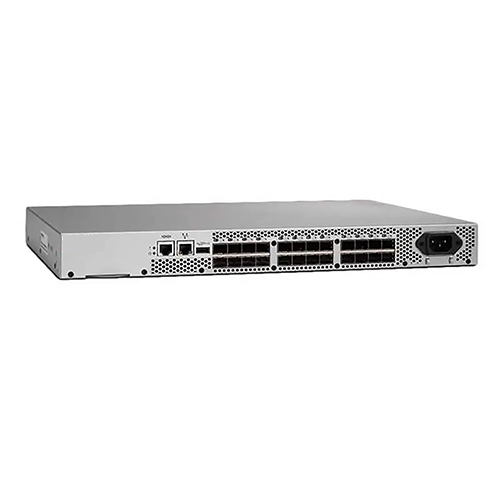

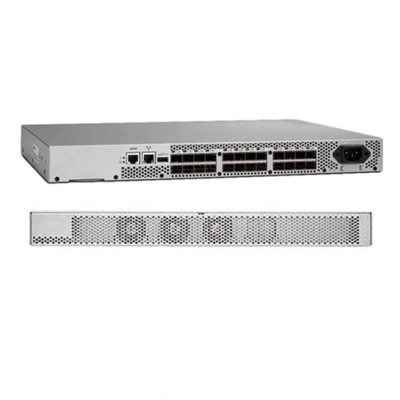

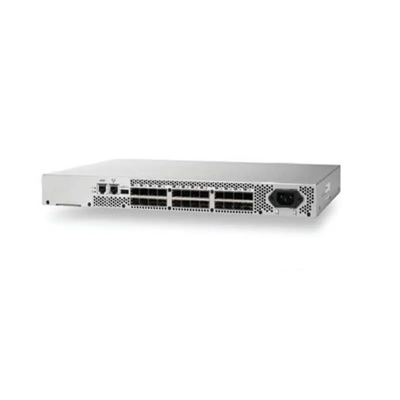

| Device Type | Switch – 8 ports – managed – with 8 x 16 Gbps SWL SFP+ transceiver |

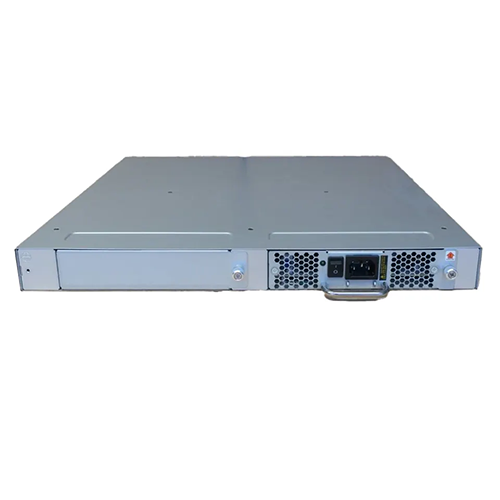

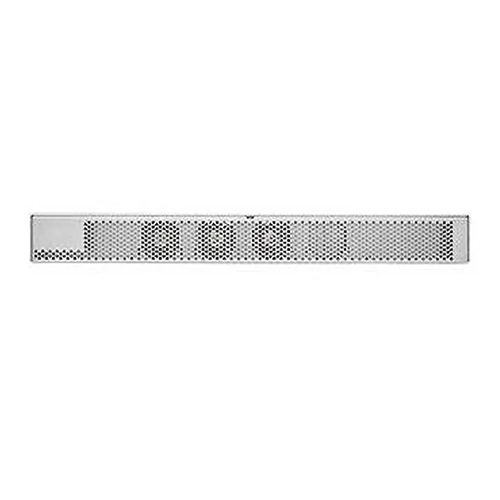

| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | Subtype |
| Ports | 8 x 32Gb Fiber Channel SFP+ |
| Performance | Aggregate bandwidth: 768 GbpsFabric latency: 900 ns |
| Capacity | Nodes: 6000 |
| Frame Buffers | 2000 dynamically allocated |
| Maximum Frame Size | 2112-byte payload |
| Remote Management Protocol | SNMP 1, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SFTP |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), DH-CHAP, FCAP |
