| Power supply |
AC 220 V or DC 48 V or DC 24 V (power supply optional) |
| Optical Port |
1 |
| Optical Fiber |
Single Fiber |
| Fiber Interface |
FC |
| Wavelength |
1310 nm to 1610 nm single mode; |
| No relay transmission distance |
0 mi to 49.71 mi (0 km to 80 km) |
| Typical transmit power |
single mode 100 uw to 0.93 mw |
| Interface |
HD video female |
| Signal level |
0.5 V to 4 Vp p |
| Input or Output Impedance |
600 Ω (unbalanced or balanced) |
| AD or DA bit width |
24 Bits |
| Sampling frequency |
128 K |
| Bandwidth |
20 Hz to 20 kHz |
| Total harmonic distortion |
<1% |
| Signal to Noise Ratio (SNR) |
>85 dB |
| Physical interface |
0.14 in (3.5 mm) |
| Working temperature |
-14 °F to 140 °F (-10 ° C to 60 ° C) |
| Storage temperature |
-40 °F to 185 °F (-40 ° C to 85 ° C) |
| Working humidity |
0% to 95% (no condensation) |
| MTBF |
>100,000 hours |
| Standard |
HD Video 1.4 HDCP1.4 |
| Pixel bandwidth |
340 MHz |

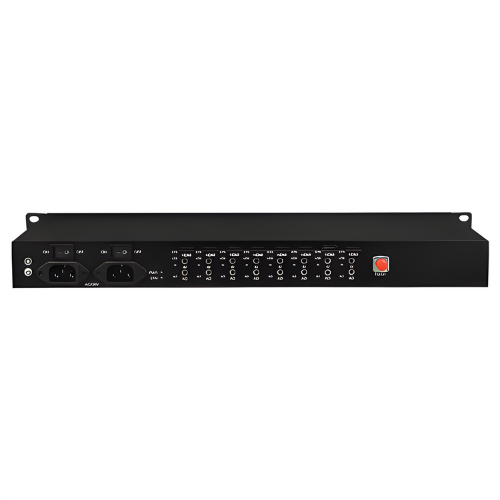

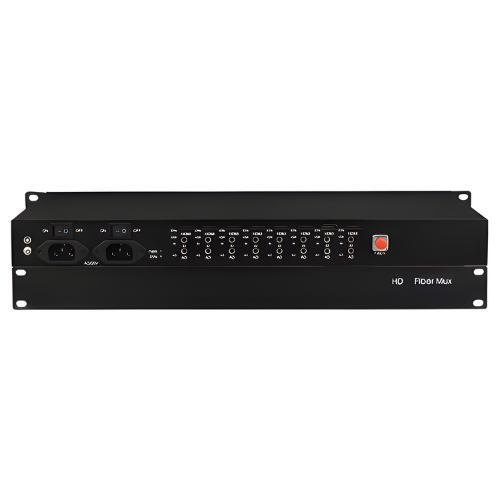

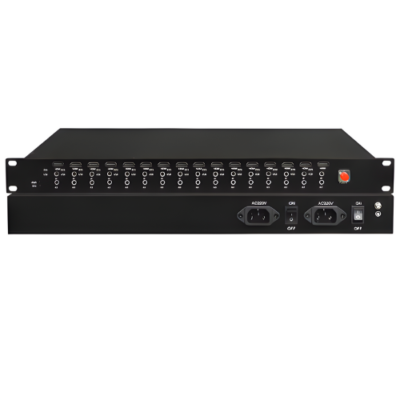

| Product function description |
Simultaneous transmission of 8 4K HD Video 1.4 signals over optical Fiber |
| Service port description |
1 optical Fiber interface; 8 HD Video signals |
| Product size |
19.09 in x 7.87 in x 1.77 in (485mm x 200mm x 45mm) ,1U rackmount |
| Weight |
4.96 lb (2.25 kg) or set |
