Description
Technical Specifications
| Frequency Range | 840 MHz to 960 MHz, adjustable |
| Protocol | EPC C1G2, ISO18000-6B/C |
| Chip | Impinj R2000 |
| Frequency Band | GB 920 MHz to 925 MHz, 840 MHz to 845 MHz; FCC 902 MHz to 928 MHz; |
| Optional Frequency Band | Please tell our sales which band do you want before ordering: ETSI 865 MHz to 868 MHz; JP 916.8 MHz to 920.4 MHz; TW 922.25 MHz to 927.75 MHz; ID 923.125 MHz to 925.125 MHz; RUS, 866.6 MHz to 867.4 MHz; TEST, 802.75 MHz to 998.75 MHz; JP_LBT, 916.8 MHz to 920.8 MHz |
| Communication Protocol | TCP/IP |
| Reading Distance | 0 ft to 65.6 ft (0 m to 20 m), adjustable |

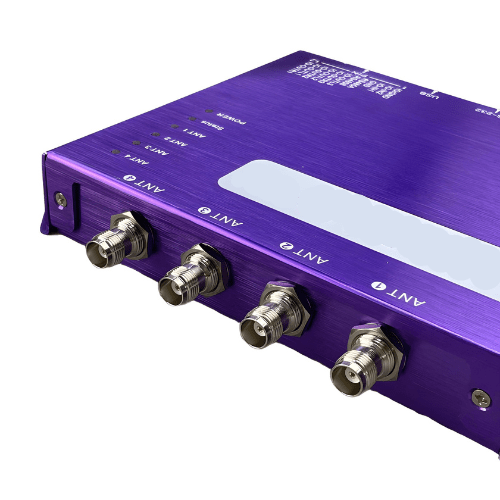

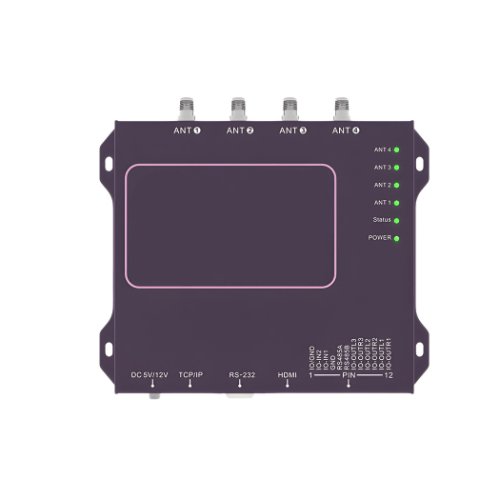

| Antenna Port | 4 TNC ports |
| I / O Interface | 2 inputs, 3 outputs |
| Working Mode | Fixed frequency or frequency hopping optional |
| RF Output Power (Port) | 33 dBm ±1 dBm (MAX) |
| Recognizing Speed | >600 times per S |
| Communication | COM port or network |
| Rs232 | Baud rate support 9600, 19200, 115200 (default), 460800 optional; |
| Physical Specifications Material | Aluminum |
| Installation Method | Fixed by four screw holes |
| Power Supply | 12 V or 3 A |
| Power Consumption | 20 W (output power 33dbm) |
| Operating Environment Operating Temperature |
-4 ºF to 140 ºF (-20 ºC to +60 ºC) |
| Storage Temperature | -40 ºF to 185 ºF (-40 ℃ to +85 ℃) |
| Working Humidity | <95 % 77 °F (+25°C) |
| Dimension | 7.6 in x 6.07 in x 1.0 in (195.4 mm x 154.4 mm x 27 mm) |
| Net Weight | 2.6 lb (1.2 kg) |
