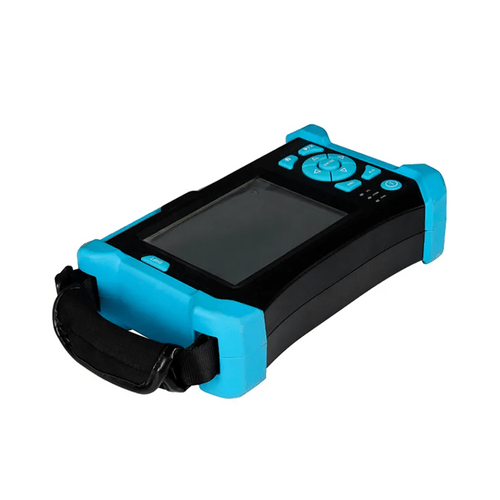

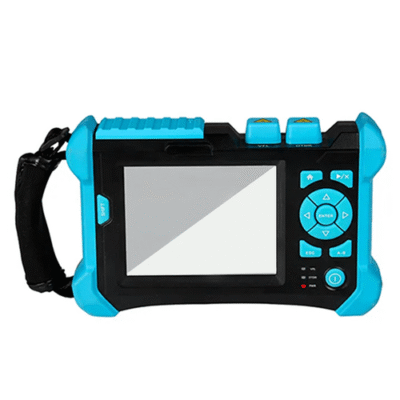

Asset Track Pro FTTH Equipment Optical Fiber

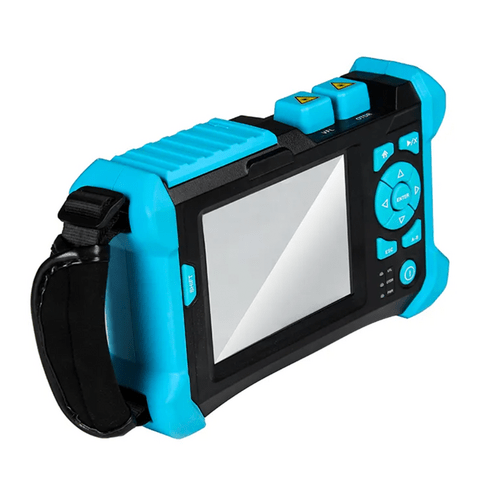

Asset Track Pro FTTH Equipment Optical Fiber - Image 2
Asset Track Pro FTTH Equipment Optical Fiber - Image 3

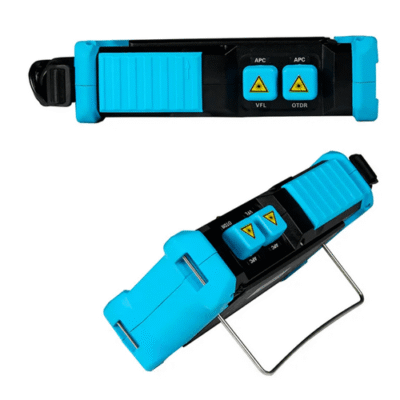

Asset Track Pro FTTH Equipment Optical Fiber - Image 4

Asset Track Pro FTTH Equipment Optical Fiber

This FTTH Equipment Optical Fiber has wavelength of 1300 nm, dynamic range of 23 dB, test range of 60 km, and distance scope of 0.3 km to 180 km.

SKU: ATPENTE-141 Category:

Description

Features

  • Large touch screen + shortcut keys, easy to operate
  • Large-capacity polymer lithium battery, with super long working hrs.
  • Intelligent testing, simple use, powerful function
  • Media of Memory Card + SD card
  • Able to meet FTTx testing needs Several wavelengths can be chosen.
  • Solid casing design, dustproof and shockproof
  • Optical Time Domain Reflectometer
  • More powerful performance, much easier operation, more efficient work.
  • To meet the needs on the wide range of measurement by FTTx,
  • Metropolitan Area Network, Backbone Network and other optical networks



Technical Specification

Distance Scope 0.18 mi to 111.8 mi (0.3 km to 180 km)
Sampling Point 32
Wavelength 850 nm or 1300 nm
Optical Interface FC or UPC (PC, and are selectable)
Visible Failure Orientation VFL Wavelength 650 nm
Data Interface USB interface, SD card interface
Test Range 37.28 mi (60 km)
Network Wireless Lan
Typical Real-time Refreshing Duration 0.2 s
Memory Capacity of Trace SD Card (4 G) ≥1000 pcs
Sampling Resolution Ration 7.76 in to 4.92 in (0.125 m to 8 m)
Dynamic Range 23 dB or 21 dB
Dynamic Range (dB)² 21 or 19
Push Width (ns) 5 20 40 80 160 320 640 1260
Display 5.6 in (16.51 cm) LCD touch screen
Weight 3.30 lb (1.5 kg)
