Description
Overview
GAOTek gigabit ethernet managed industrial network switch, this series of products adopts industrial rail design. The 8*Gigabit Ethernet + 8*Gigabit SFP network switch is a new generation of multi-service access network management Gigabit redundant Ethernet switch. It has the characteristics of high integration, rich functions, simplicity and convenience, and represents the industry’s highest level. Contains 8 Gigabit ethernet ports and 8 Gigabit optical ports, especially suitable for occasions with large data streams such as video transmission. Supports rich Layer 2 management protocols required for industrial switch applications, supports ITU G.8032 redundant ring network protocol, and forms cascaded, single-ring, tangent-ring networks and other topological structures. The self-healing time is less than 20ms, ensuring. The real-time and stability of the network. The switch adopts mature technology and open network standards, adapts to low temperature and high temperature, has strong anti-electromagnetic interference, anti-salt spray, anti-seismic and anti-shake, meets the harsh working environment requirements of industrial sites, and provides efficient, reliable and fast communication for the industrial Internet of Things.
Features
- All-aluminum alloy shell.

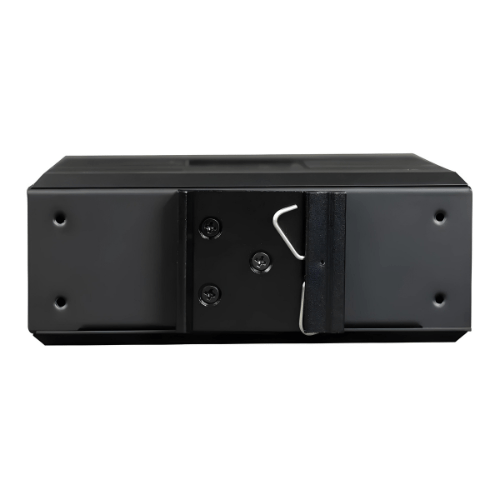

- Aluminum alloy industrial guide rail design.
- Support 8 Gigabit ethernet ports.
- ERPS ring network protocol.
- Power down alarm, loop alarm.
- Provide Console debugging.
- Can support POE (POE+) equipment;
- Ethernet interface with lightning protection.
- 10/700μs
- Open circuit peak output voltage 6KV standard;
- Support a wide range of AC and DC input (9V-48V).
- 104 F to 185 F (40℃ to +85℃).
Technical Specifications
| Supported Protocol | IEEE802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE802.1q、IEEE802.1p、IEEE802.1z、IEEE802.1d、IEEE802.1s、IEEE802.1w、IEEE802.1ax、 IEEE802.1ak |
| Maximum Frame Length | 10 K |

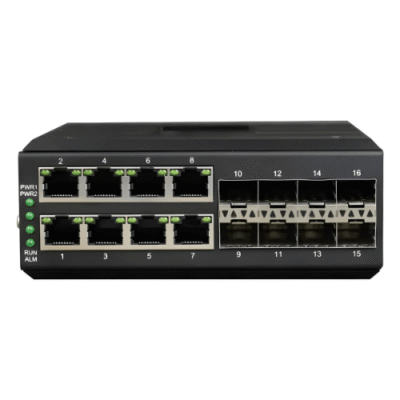

| Port Number | 8 X 10 or 100 or 1000M RJ45 Ethernet ports, 8 x 100M or 1000M SFP optical ports, and 1 X Console port |
| Network Medium | 1000 Base-LX: Use long-wavelength laser (1310 nm) to cross multi-mode and single-mode fiber, the maximum distance of multi-mode fiber is 550 m, and single-mode is 20-120 km. |
| 1000 Base-SX: The maximum transmission distance of 62.5μm multimode fiber is 275m, and the maximum transmission distance of 50μm multimode fiber is 550m. |
|
| 10 Base-T: Type 3 or more UTPs; (Supports maximum transmission distance of 200m) | |
| 100 Base-TX: Type 5 UTPs; (Supports maximum transmission distance of 100m) | |
| 1000 Base-T: CAT-5E UTP or Class 6 UTP (Supports a maximum transmission distance of 100 m) | |
| VLAN Address Table | 4 K |
| MAC Address Table | 8 K |
| Cache | 4 Mbits |
| Backplane Bandwidth | 52 Gbit |
| Filtering and Forwarding Rates | 10 Mbps：14880 pps |
| 10Mbps：148800 pps | |
| 1000 Mbps：1488000 pps | |
| Operating Environment | 104 F to 185 F (40℃ to 85℃); storage humidity 0%～90% non-condensing |
| MTBF | > 100,000 hours |

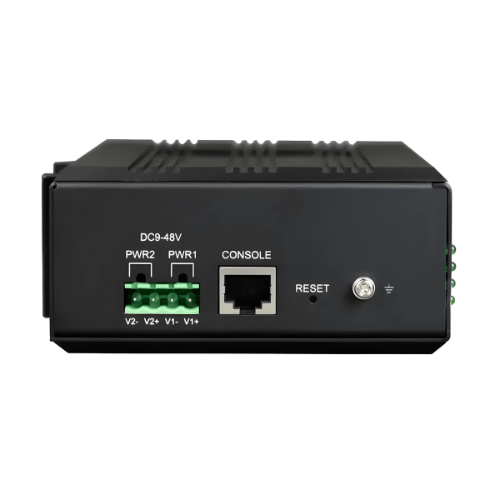

| Power Supply | Redundant dual power input DC9-48 V or AC9-48 V Overload protection: support; reverse polarity protection: support; redundant protection: support Access terminal: 4-core 5.08 mm pitch plug-in terminal |
| Power Dissipation | Max 15 W |
| Product Size | 5.34 in X 4.73 in X 1.97 in (133 mm L x 120 mm W x 50.0 mm H) |
| Weight | 2.09 lb (0.95 Kg) |
