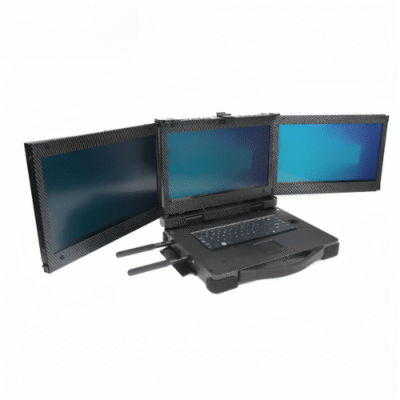

Asset Track Pro Industrial Portable PC

This Industrial Portable PC has a storage environment of -4 ℉ to 158 ℉, a working environment of -14 ℉ to 158 ℉ and a display of 15.6 in (39.6 cm).

SKU: ATPITP-242 Category:

Description

Technical Specification

CPU I7 to 10870 H (8 Core, 16 Thread, 2.2 GHz to 5.0 GHz)
Memory 32 GB DDR4
Discrete Graphics Card MXM (Mobile PCI Express Module) Type
Storage 512G SSD mSATA
Battery Capacity 3 Hrs Battery Life in Normal Atmospheric Temperature
Max Resolution 1920 x 1080
Max Color 16 M
MTBF 50000 hrs
Pixel 0.297 x 0.297
Bright Adjustment Backlight Adjustment Switch
Network 2 Mbps x 10 Mbps or 100 Mbps or 1000Mbps RJ45 Type
USB 4 x USB 3.0
Power Input DC 19V
Display Port 3 x HDMI Independent Display
Wi-Fi 802.11 ac
4G 4 G or 5 G Netcom
SIM 1 x Sim Slot
Camera Front Camera 5M on Middle Screen
IP Grade IP65
Numbers of Keys 88 Keys (With Left and Right Mouse Buttons)
Storage Environment -4 ℉ to 158 ℉ (-20 °C to 70 °C)
Button Life 3 million
Working Environment -14 ℉ to 158 ℉ (-10 °C to 70 °C)
Display 15.6 in (39.6 cm) LQ TFT LCD x 3
Dimension 15.6 in x 11.6 in x 4.7 in (398 mm x 297 mm x 120 mm)
Net weight 19.8 lb (9 kg)
