Description
Overview

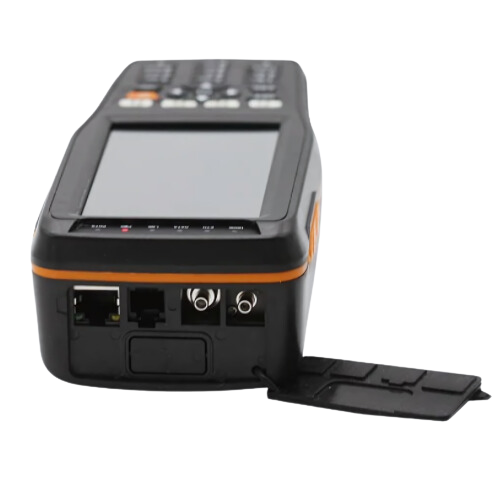

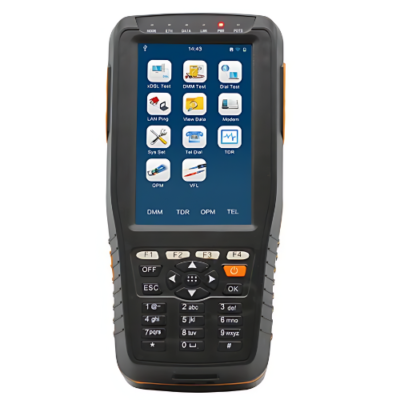

Asset Track Pro Intelligent Handheld Network DSL tester specially designed for slid line test (xDSL include ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance, It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on. X-5008 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function. It is one mufti-function tester with smart size, true color LCD and powerful management software as well as the 6600mAh rechargeable battery etc.
Features
- Supports all multi-protocol, PPPoE or PPPoA (LLC or VC MUX)
- Connects to CO via alligator clip or RJ11
- Rechargeable Li ion Battery
- Beep and LEDs alarm indications (Lower Power PPP LAN x DSL)
- Data memory fuction
- LCD display Menu operation
- Auto shut off if no any operation on keyboard
- Compliant with all known DSLAMs
- Software management
- Simple, portable and money-saved
Technical Specifications
| LCD | 800 x 480 TFT |
| Power Supply | Internal Rechargeable 6600mAH Li ion battery |
| Battery Duration | 4 to 5 hours |
| Working Moisture | 5 to 90% |
| Working Temperature | 32 ° F to 104 ° F (0 °C to 40 °C) |
| Dimensions | 6.69 in x 2.75 in x 2.05 in (170 mm × 70 mm × 52 mm) |
| Weight | < 13.22 lb (< 0.6 kg) |
