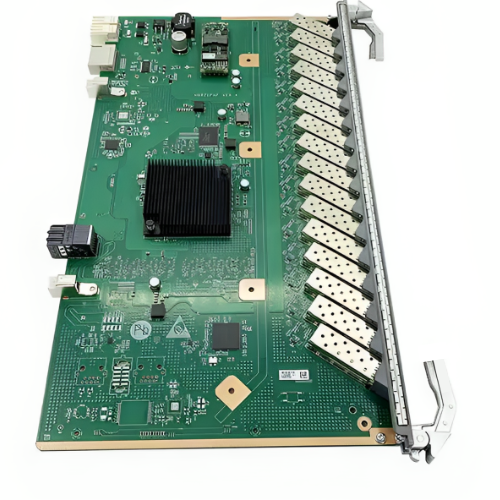

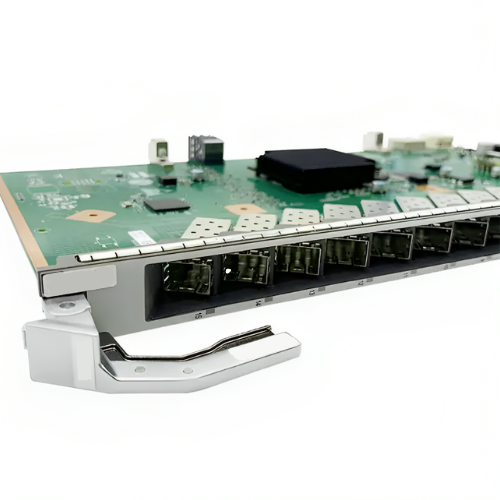

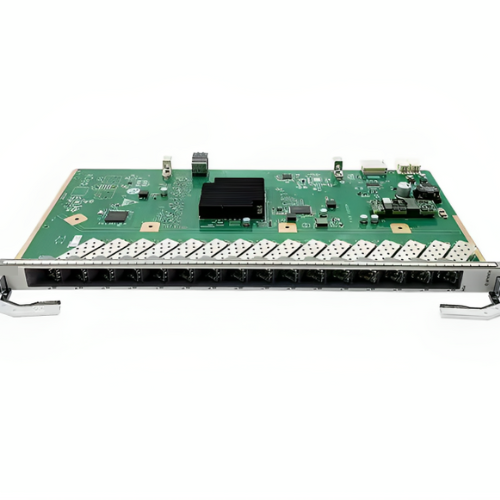

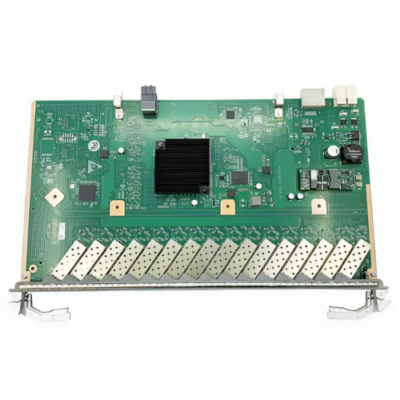

| GPON Port |
16-GPON Port |
| Type |
C+ Module: One-fibre bi-directional optical module, class C+ |
| Operating Wavelength |
Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type |
SFP |
| Port Rate |
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimum Output Optical Power |
C+ Module: 3.00 dBm |
| Maximum Output Optical Power |
C+ Module: 7.00 dBm |
| Maximum Receiver Sensitivity |
C+ Module: -32.00 dBm |
| Optical Connector Type |
SC |
| Optical Fiber Type |
Single mode |
| Overload Optical Power |
C+ Module: -12.0 dBm |
| Extinction Ratio |
8.2 dB |
| Power Consumption |
Static: 25 W; Maximum:50 W |
| Maximum Frame Size |
2052 bytes |
| Operating temperature |
-40 °F to 149 °F (-40 °C to + 65 °C) |
| Dimensions (W x D x H) |
0.917 in x 10.15 in x 15.71 in (23.30 mm x 257.90 mm x 399.20 mm) |
