Description
Overview

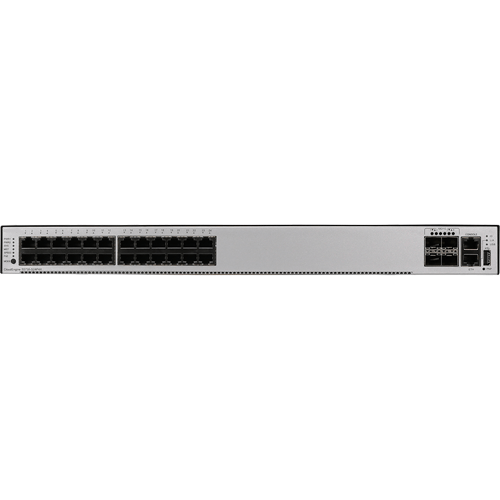

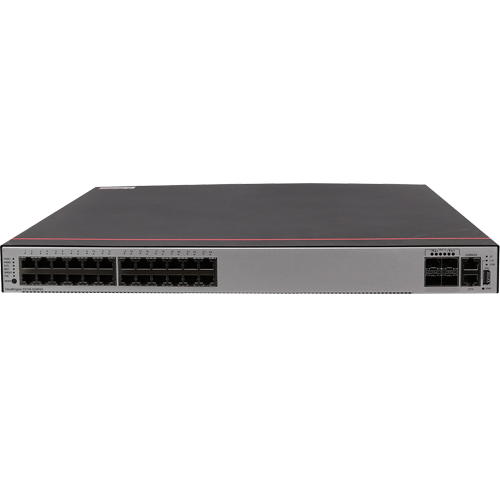

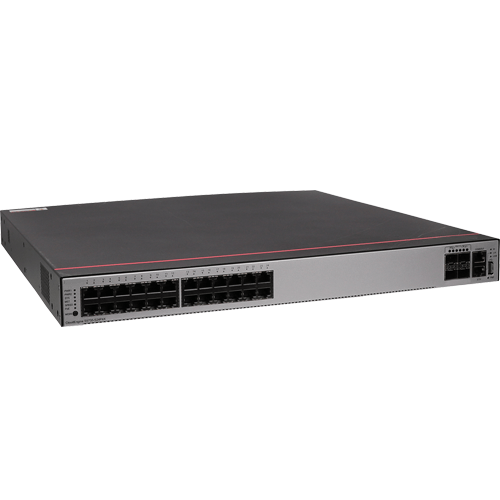

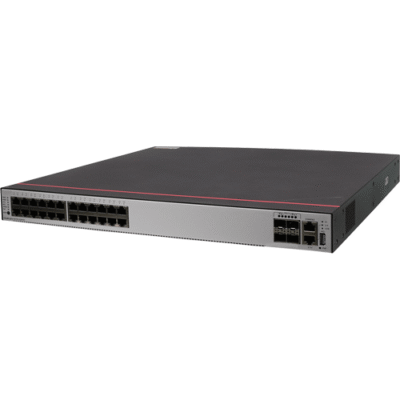

Asset Track Pro LAN edge switch is an advanced standard Layer 3 gigabit switch, offering adaptable gigabit access and 10 GE uplink ports. These switches feature an industrial-grade operating temperature range and outdoor surge protection, making them suitable for harsh outdoor cabinet environments. They are well-suited for various access scenarios, including Ethernet to the x (ETTx).
Features
- Next-gen Layer 3 gigabit switches for flexible access
- Industrial grade with outdoor surge protection
- Ideal for Ethernet to the x (ETTx) scenarios
Technical Specification
| Forwarding Performance | 95.2 Mpps |
| Switching Capacity | Stock |
| Ports | 128 Gbit / s / 336 Gbit / s |
| Transmission Rate | 10 / 100 / 1000 Mbps |
| Ports | 24 x 10 / 100 / 1000 Base-T Ethernet ports and 4 x 10 GE SFP+ ports |
| Operating Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Surge Protection | Built-in surge protection to best suit harsh outdoor environments |
| Relative humidity | 5% to 95% (non-condensing) |
| Heat dissipation | Heat dissipation with fan, intelligent fan speed adjustment |
| Device Type | Switch –24 Ports – Managed |
| Flash memory | 512 MB |
| Console port | RJ 45 |
