Description
Overview

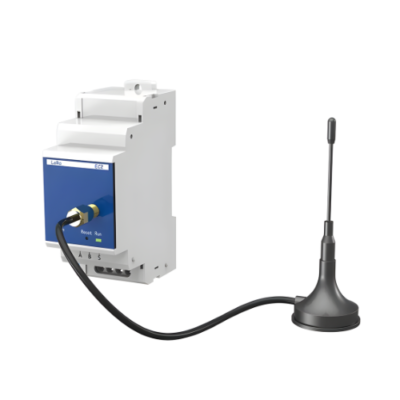

Asset Track Pro lora gadget serves as a versatile supporting module designed for LoRa and slot channel transmission capabilities. It offers external RS 485 connectivity for parameter configuration, IAP program upgrades, and real-time state monitoring. Users can efficiently configure frequency bands, channels, and various LoRa parameters, including frequency, spread spectrum factors, bandwidth, and coding rates, either through a computer interface or manual adjustments, making it adaptable to diverse IoT applications.
Features
- Meter-Powered
- 100 MW Frequency
- High Data Rate
- Supports Multiple Meters
Technical Specifications
| Working Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to 85 °C) |
| Relative Humidity | ≤95% RH, without condensation |
| Working Altitude | ≤98,425.2 in (2.5 km) |
| Antifouling Level | No corrosive gas |
| Protection Class | IP 20 |
| Insulation | Signal, power, output terminal to case resistance >100 MΩ |
| Pressure Resistance | Input and power ≥2 kV, input and output ≥2 kV, power and output ≥2 kV |
| Communication Interface | Physical Interface: RS-485 |
| Communication Rate | Max Communication Rate: 115200 bps (Default 9600 bps) |
| Communication Protocols | Modbus-RTU |
| Isolation Voltage | Not specified in the provided information |
