Description
Overview

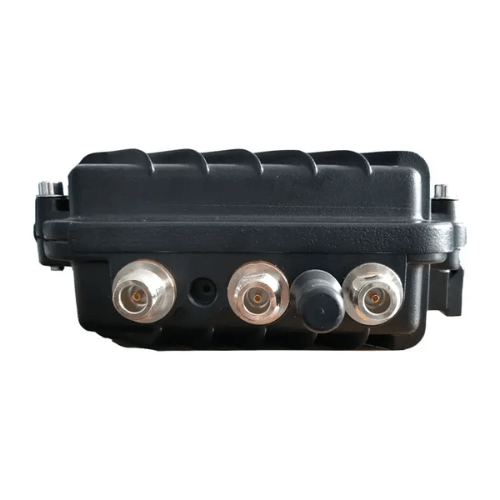

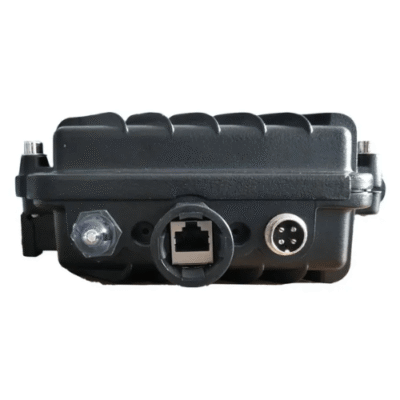

GAO Tek LoRa WAN ion gateway is a wireless communication gateway or base station based on the LoRa WAN international standard protocol, which can be connected to LoRa WAN terminals of various application nodes. The collected information is forwarded to the LoRa Wan network server through 3G or a high-performance industrial-grade ARM9 communication processor and industrial-grade wireless module and uses Linux embedded real-time operating system as the software support platform. At the same time, it provides 1 Ethernet LAN and 1 WIFI interface, and supports WIFI wireless configuration management and online upgrade, support GPS positioning, support 220 V mains power supply. The gateway complies with the standard LoRa WAN protocol and is suitable for standard LoRa WAN compliant terminals and Network Servers.
Features
- 220 V AC power supply
- Industrial design
- Encrypted connection, safe and reliable
- Linux OS
- GPS
- LoRa Wan international standard protocol never disconnected.
- IP 67 waterproof, suitable for outdoor and indoor use
Technical Specifications
| Power Supply | AC input 100 V AC to 240 V AC Frequency 47 Hz to 63 Hz |
| LoRa Wireless Band | Support free licensed frequency bands worldwide, EU 433, CN 470, EU 868, US 915, AS 923, AU 915, KR 920, IN 865 Need to choose according to the application country or region. |
| LoRa Communication Rate | 292 bps to 5.4 kbps Support bandwidth 125 KHz to 500 KHz Spreading factor supported SF 7 to SF 12 |
| LoRa Transmit Power | 27 dBm (Max) |
| Network Mode | LoRa Wan International standard protocol, star network topology |
| Network Access Interface | Ethernet RJ-45 Wi-Fi LTE 4 G |
| Protection Class | IP 67 |
| Rated power Consumption | 5 W |
