Description
Technical Specifications
| Memory | MAX 8GB DDR3L |
| LAN | 10 Mbit or 100 Mbit or 1000 Mbit Ethernet x 2 |
| SATA | One MSATA |
| USB | USB 2.0 x 2 and USB 3.0 x 1 |

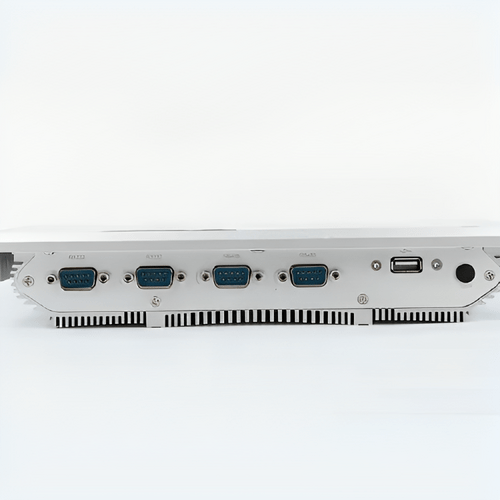

| I/O | 5 COM (RS 232 x 4, RS 485 x 1) |
| Power Requirements | DC 12 V |
| Display Resolution | 1280 pixels x 800 pixels PPI |
| Display Area | 8.54 in x 5.33 in (216.96 mm × 135.60 mm) |
| Max. Colors | 16.7 M colors |
| Luminance | 330 cd/㎡ |
| LVDS | 8-bit LVDS |
