Description
Overview

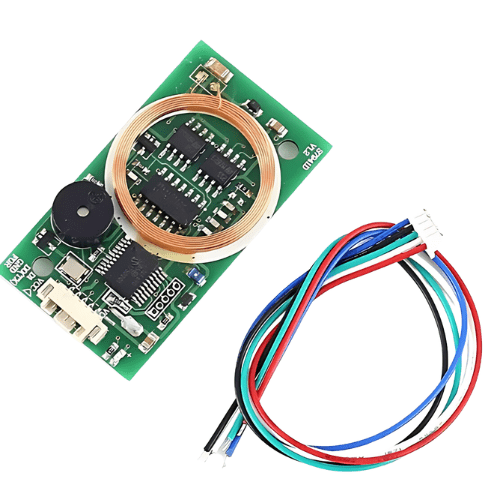

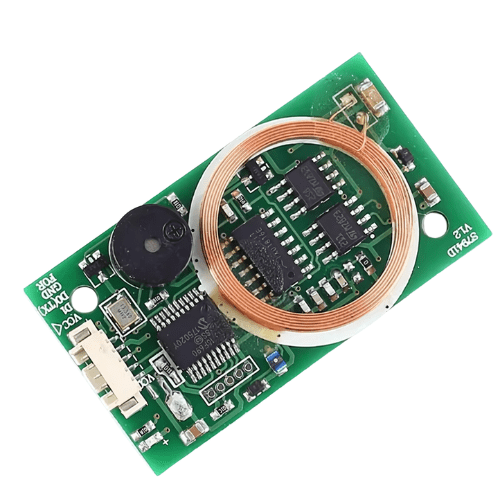

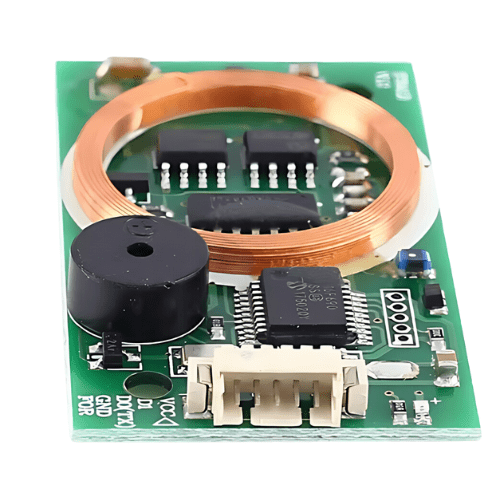

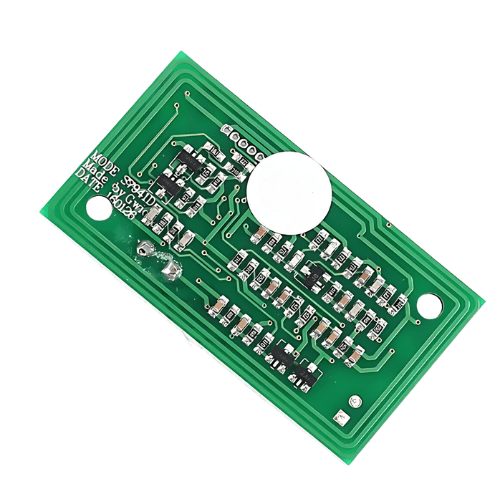

Asset Track Pro Mini Dual Frequency NFC Reader Module is a RFID reader module. It integrates high performance RF circuits and antennas. Built in buzzer and LED indicator. It can supports read ID and IC card.
Technical Specifications
| Frequency | 13.56 MHz, 125 kHz |
| Read Distance | 3.15 in (8 cm) For EM4100 Card 1.97 in (5 cm) For S50 S70, Desfire, FM1208 Card |
| Interface | Wiegand or UART(TTL) |
| Operating Current | 40 mA |
| Working Humidity | 0% to 95% RH |
| Working Temperature | -13 oF to 176 oF (-25 oC to 80 oC) |
| Size | 1.81 in x 0.63 in x 0.26 in (46 mm x 16 mm x 6,5 mm) |
