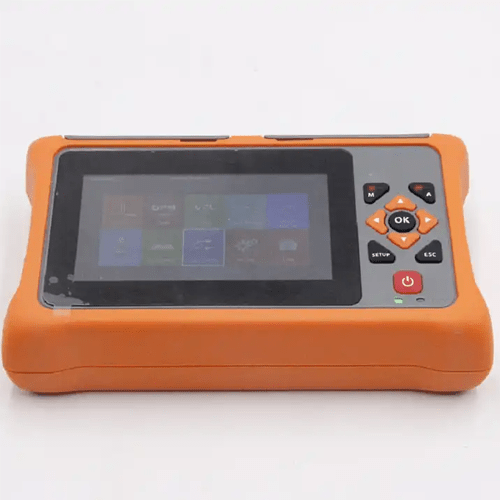

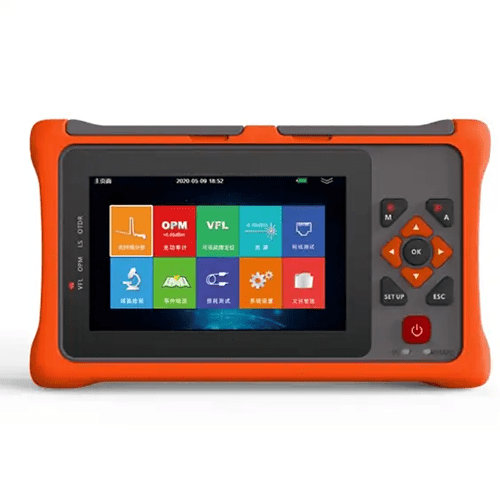

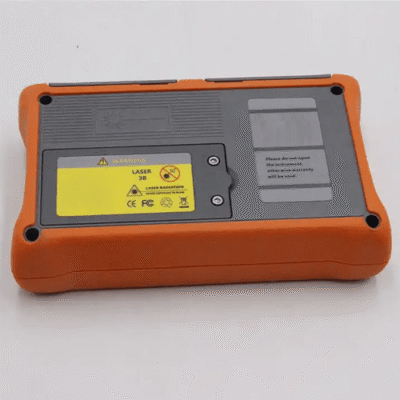

Asset Track Pro Mini OTDR Event Map Ethernet Tester

This New Mini OTDR Event Map Ethernet Tester has sampling point of 64000, linearity of 0.05 dB and loss resolution of 0.001 dB.

SKU: ATPENET-135 Category:

Description

Features

  • 12-in-one function OTDR, VFL, OLS, Cable Test etc
  • The 4.3-in (10.92 cm) full-view capacitive touch screen
  • Cover plate type tempered glass panel
  • Support horizontal version
  • Perfect fusion of the two habits of user operations
  • Support charging treasure charging,
  • the international standards of test data with perfect simulation software
  • Sink type light port design,
  • Support U disk, SD card and Micro USB export data protection
  • Any interface supports screen capture



Technical Specifications

Testing Distance 0.06 mi, 0.31 mi, 1.24 mi, 3.10 mi, 6.21 mi, 12.42 mi, 24.85 mi, 55.92 mi (100 m, 500 m, 2 km, 5 km, 10 km, 20 km, 40 km, 90 km)
Sampling Resolution Minimum 0.65 ft (0.2 m)
Sampling Point 64,000
Linearity ≤0.05 dB
scale Indication X axis: 4 m/div to 70 m/div, Y axis: 0.09 dB/div to 5 dB/div
Loss Threshold 0.01 dB
Loss Resolution 0.001 dB
Distance Resolution 0.01 m
Distance Accuracy ± (1.64 ft (0.5 m) + Range × 3 × 10 – 5 + Sampling resolution) （Excluding refractive index error）
Display 4.3-in (10.92 cm) capacitive touch screen with full viewing, TFT 800 pixels x 480 pixels resolution
Battery 5200 mAh or 3.7 V, standby time > for 10 hrs
Power Adapter Power supply AC or DC adapter, input 100 V to 250 V AC, 50 Hz to 60 Hz, 3 A max, Output 12 V DC. 35 W
Data Storage 100,000 groups of curves
Interface USB A Type × 1, Micro-USB × 1, SD card
Working Temp 14 ℉ to 122 ℉ (-10 ℃ to +50 ℃)
Storage Temp -4 ℉ to 176 ℉ (-20 ℃ to +80 ℃)
Humidity ≤95% (non-condensation)
Dimension 6.88 in x 4.13 in x 1.77 in (175 mm x 105 mm x 45 mm) or 1.23 lb (0.56 kg)
