Description
Overview

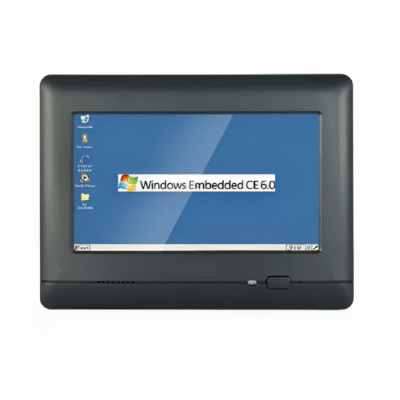

Asset Track Pro mini tablet supports reliable, durable environments. Its product supports industrial touch screen panel PC for process manufacturing, industrial automation, building automation, process control, machinery manufacturing, and custom machine to machine interface applications. It introduces core CPU of S3C6410 processor with MS windows CE 6.0 operating system, features of rich resource, interfaces, low consumption and high reliability.
Features
- LCD Panel all in one PC
- All hardware and software customized
- Powerful 667 MHz, Samsung s3c 6410 CPU, 256 MB DDR 3 RAM
- 400 cd/m² brightness display with resistive touch
- RS 232, RS 485, LAN Port RJ 45

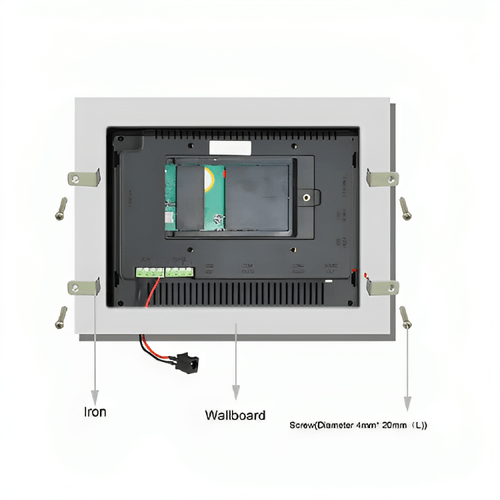

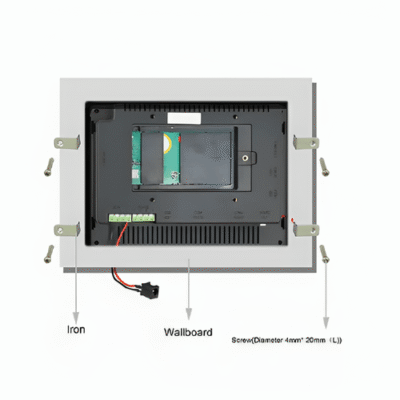

- Open frame mount method
- Wide voltage 9 V to 24 V
- 3 G or WIFI or Bluetooth or GPS
Technical Specifications
| Memory | DDRII SDRAM 256 MB |
| Nan Flash | 2 GB |
| Operation System | WINDOW CE 6.0, Linux |
| USB HOST1.1 | 3 |
| MINI USB interface | 1 |
| RS 232 port | 2 |
| RS 485 port | 1 |
| WIFI | Optional |
| SD Card slot | 1 (support max to 32 GB) |
| Input Voltage | DC 12 V Range from:9 V to 24 V |
| Resolution | 800 x 480 PPI |
| Brightness | 400 cd/m² |
| Max Consumption | ≤5 W |
| Working Temperature, Humidity | 32 °F to 122 °F (0 °C to 50 °C), 0% to 85% RH |
| Storage Temperature, Humidity | 14 °F to 140 °F (-10 °C to 60 °C), 0% to 75% RH |
