| WI-FI |
Dual-band WIFI (2.4 GHz or 5 GHz) single stream 802.11 a or b or g or n or ac |
| BT |
5.0 Low Energy (LE) |
| CPU |
MTK P60 (ARM A73 2.0 GHz Octa-core) |
| GPU |
Arm Mali–G72 MP3 |
| RAM |
8 G |
| Internal Memory |
128 G |
| Main Camera |
13.0 MP (AF) with flash led |
| Sub Camera |
5.0 MP |

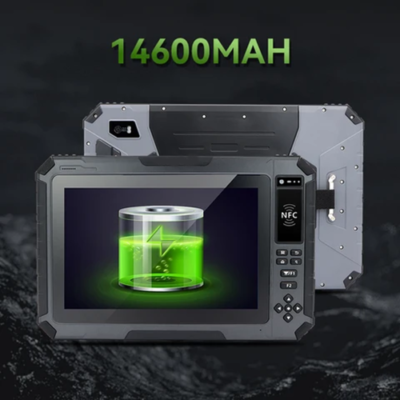

| Battery |
14600 mAh |
| Display |
10.1 in (25.65 cm) IPS or AFFS 1200 x 1920 FHD industrial 1000 nit Sunlight Readable |
| Touch Panel |
Capacitive or frosted tempered film supports glove touch or spray or active capacitive pen |
| SIM Card |
Nano sim card x 2 |
| TF Card |
Micro SD card (T-FLASH card), max 256 GB |
| Charging Port |
Type-C and 8 PIN magnetic charging |
| Data interface |
USB Type-A (Host) x 2 Type-C (OTG) x 1 |
| Gravity sensor |
Support |
| Motion sensor |
Support |
| Direction Sensor |
Support |
| Magnetic Field |
Support |
| Gyro sensor |
Support |
| Rotation Vector |
Support |
| Light sensor |
Support |
| Acceleration sensor |
Support |
| Temperature pressure sensor |
Optional |
| Charger |
5.0 V 2 A to 10 W |
| Navigation |
GPS + Glonass + Beidou + Galileo + AGPS |

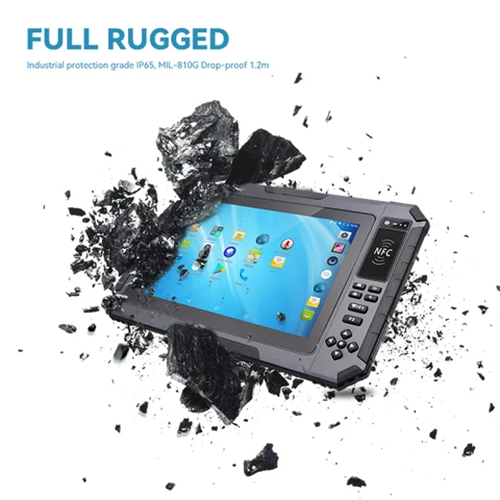

| Shake-proof |
1 Hz to 19 Hz or 0.03 in (1.0 mm); 19 Hz to 200 Hz or 1.0 g |
| Drop proof or IK |
MIL-STD-810G or Method 516.6 or Procedure IV & Touch Panel IK05 |
| Waterproof |
Class 5 |
| Dustproof |
Class 6 |
| Reliability |
MTBF >5000 hrs, MTTR <0.5 hrs |
| Operating temperature |
-4 ⁰F to 131 ⁰F (-20 °C to 55 °C) |
| Storage Temperature |
-40 ⁰F to 176 ⁰F (-40 °C to 80 °C) |
| RH |
5% to 95% (No condensation) |
| Operating Altitude |
Max: 2.79 mi (4.5 km) |
| OS |
Android 10 or 11 |

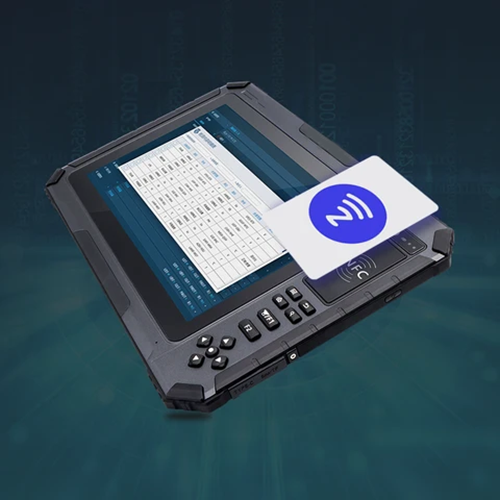

| Frequency |
13.56 MHz |
| Read-write distance |
0.78 in to 1.96 in (2 cm to 5 cm) |
| Scanning engine |
E20 Barcode module |
| Size |
12.59 in x 8.97 in x 0.47 in (320 mm x 228 mm x 12 mm) |
| Weight |
2.99 lb (1.36 kg) |
