Overview

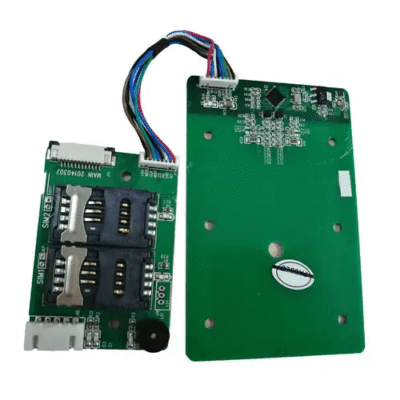

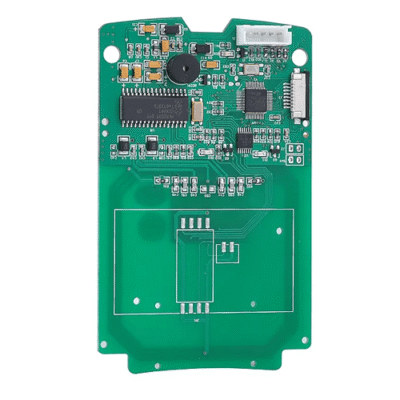

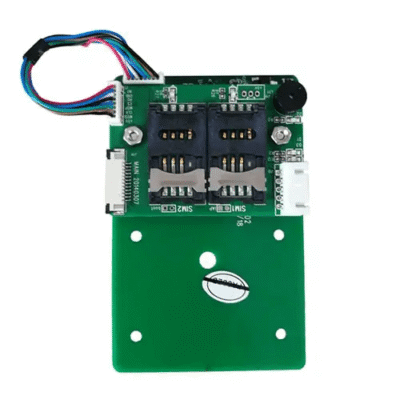

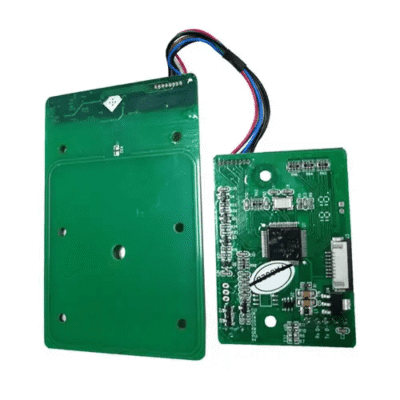

Asset Track Pro NFC Smart Module is a pc/sc nfc smart reader module that supports reading/writing iso14443 and iso18502 rf smart cards. compliant with both ccid and pc/sc, it is a plug-and-play USB NFC device provides interoperability with different devices and applications for secure personal identity verification and online micro-payment transactions
Technical Specifications
| RF Distance | 1.97 in (50 mm) |
| Interface | RS 232 USB (optional) |
| Power Supply | DC 5V, ± 5% |
| Quiescent Current | 50 mA |
| Peak Current | 200 mA |
| Lifecycles | 100,000 times |
| Working Temperature/Humidity | 32 °F to 122 °F (0 °C to 50 °C), 0% RH to 90% RH without condensation |
| Storage Temperature/Humidity | 14 °F to 140 °F (-10 °C to 60 °C), 0% RH to 90% RH without condensation |
| Dimension | 6.34 in x 3.35 in x 2.13 in (161 mm x 85 mm x 54 mm) (with flat bezel) |
| Weight | 0.082 lb (37 g) (without package and accessories) |
