Description
Overview

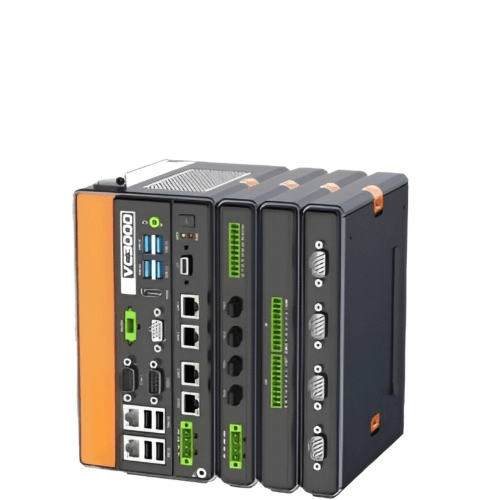

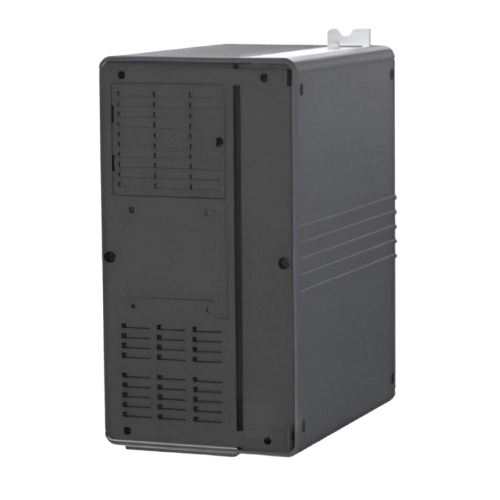

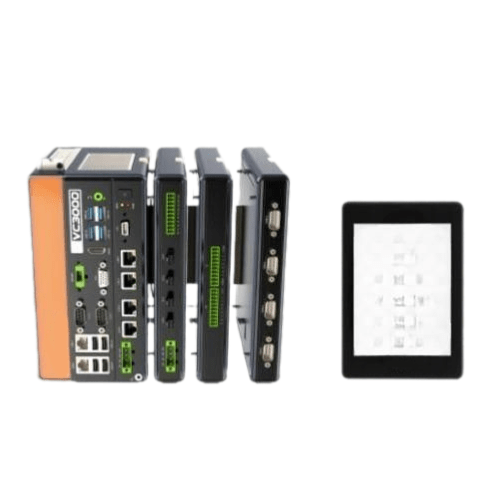

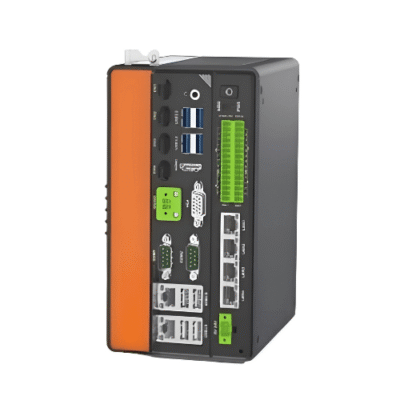

Asset Track Pro PCIE extension Vision Controller, this product features a 6900 G processor, 8 G memory, 24 VDC power supply and 128 G SSD storage.
Features
- Desktop grade Intel 12 th generation CPU
- Powerful expansion slot configuration.
- With stable performance
- Supports 24 GPIO input
- Output functions.
- Output support for NPN or PNP
- Adopting gigabit Ethernet port
- Supporting high-speed
- Supports PCIE3.0 x16 interface Optional built-in USB
Technical Specifications
| Processor | G6900 at LGA 1700 type CPU.Max.65 W TDP |
| Memory | 8 GB |
| Storage | 128 GB SSD |
| Graphics Processor | Intel® HD Graphics 710 |
| Operating system | Unactivated 64 to bit Windows 10 |
|
Video Output |
HDMI interface × 1 VGA interface × 1 Supports dual display outputs Max. resolution 1920 × 1080 @ 60 Hz (HDMI interface) Max. resolution 1920 × 1440 @60 Hz (VGA interface) |
| Digital I/O | Opto-isolated input × 8, opto to isolated output × 16 Output supports NPN or PNP switch |
| Network Interface | GigE interface × 6 |
|
USB interface |
USB 2.0 × 4 USB 3.0 × 4 Built to in USB 2.0 × 1 |
| Serial port | RS-232 × 2, supports switching to RS to 485 and RS to 422 |
| Light interface | 24 VDC constant voltage × 4 (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.) |
| Expansion interface | PCIe 3.0 ×16 (× 1) |
| Power supply | 24 VDC |
| Typical power consumption | Typ. 95 W |
| External dimensions | 6.4 in × 8.2 in × 4.2 in (161.4 mm × 208.5 mm × 105.5 mm) |
| Weight | Approx 4.6 lb. (2.1 kg) |
| Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Humidity | 20% to 95% RH, non to condensing |
| Certification | CE, KC, CCC |
