Description
Technical Specifications
| Performance | Performance Switching Capacity: 216 Gbps Throughput: 160.70 Mpps MAC Capacity: 32 K |
| Hardware | Hardware Flash Memory: 256 MB DRAM: 4 GB |

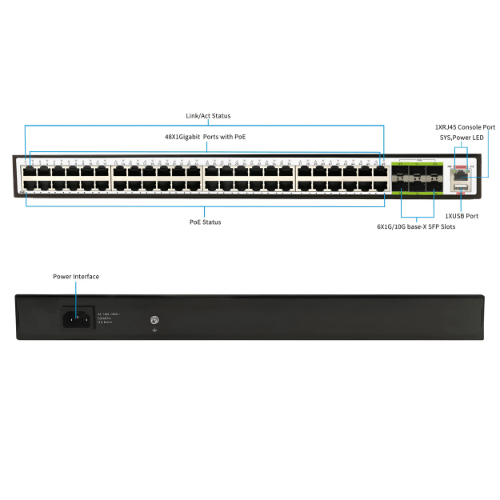

| Interface | 48 Port 10 or 100 or 1000 Base-T 6 Port 10G Base-R (SFP or SFP+) 1 Port Console(With RJ-45) 1 Port USB |
| Power | Input AC 100 to 240 VAC, 50 to 60 Hz Power Consumption: 75 W |
| PoE | Max PoE Power Budget: 780 W Support 48 to Ports 10 or 100 or 1000 802.3 af or at Base T 15.4 W simultaneously on 48 ports ,30 W simultaneously on 24 ports |

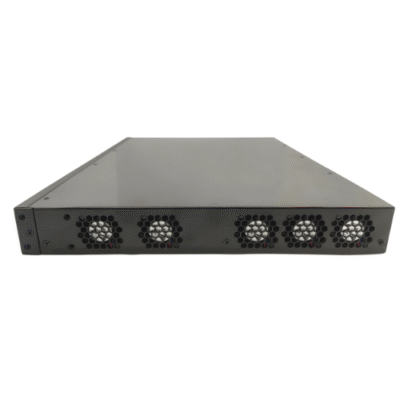

| Air Flow | FAN: Forced Air Cooling |

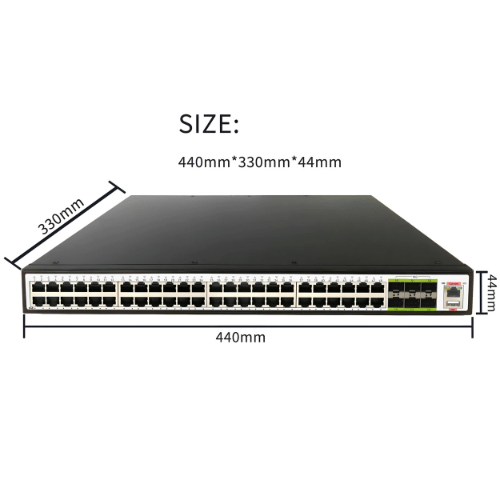

| Dimensions | 17.32 in x 1.73 in x 12.99 in (440 (W) x 44 (H) x 330 (D) mm) |
| Environmental | Operating Temperature: 32 °F to 104 °F (0 ℃ to 40 ℃) Operating Humidity: 20 to 85% RH (Non-Condensing) Storage Temperature: 68 °F to 158 °F (20 ℃ to 70 ℃) Storage Humidity: 5 to 95% RH (Non Condensing) |
| Weight | 10.69 lb (4.85 kg) |
