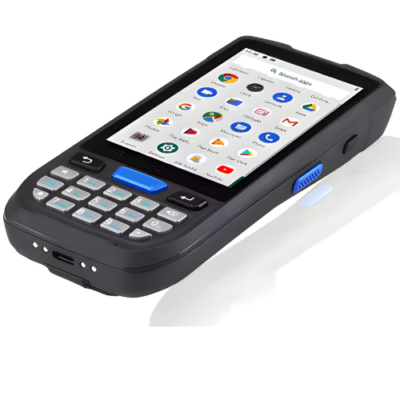

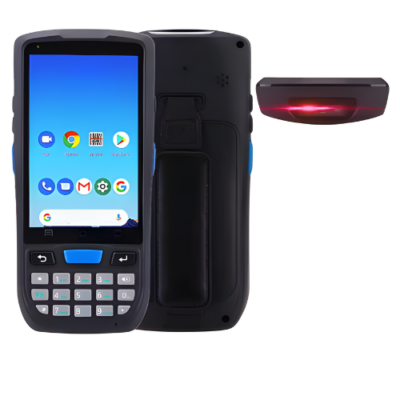

Asset Track Pro RFID Handheld Android PDA
Asset Track Pro RFID Handheld Android PDA - Image 2
Asset Track Pro RFID Handheld Android PDA - Image 3
Asset Track Pro RFID Handheld Android PDA - Image 4

Asset Track Pro RFID Handheld Android PDA

This Asset Track Pro RFID Handheld PDA, operating at a frequency of 13.56MHz, provides efficient and reliable solutions for inventory and asset management.

SKU: ATPHF-3432 Category:

Description

Features

  • Industrial grade smart handheld terminal Waterproof and dustproof
  • 4-inch high-definition full screen
  • High-speed quad-core
  • Android 9.0 system.
  • Powerful industrial-grade smart handheld terminal.
  • Developed based on Android 9.0 operating system, adopts high-performance processor, quad-core CPU, supports dual-band WiFi and high-speed 4G communication, runs fast and saves power.
  • Users can expand customized functions according to their needs to help users quickly realize information management and improve the production efficiency.



Technical Specifications

Working Frequency  13.56MHz
Protocol Standard  ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Labeling Standards  M1 card (S50, S70), CPU card, NFC tag, etc.
Read And Write Distance  0.79 in to 1.97 in (2cm to 5cm)
Display  4 inches, 480 x 800 resolution, 16.7M colors
Touch Screen  Industrial grade capacitive touch screen
Operating Temperature  -4°F to 122°F (-20°C to 50°C)
Environment Humidity  5%RH to 95%RH (non-condensing)
Drop Specification  5.91 ft. (1.8m) concrete floor
High-End Version CPU  Cortex A-53 2.0 GHz Quad Core
Ram+Rom  2GB+16GB or 4GB+64GB
Expanded Memory  MicroSD (TF) card expandable up to 128GBMicroSD (TF) card expandable up to 128GB
Overall Size  6.18 in x 2.87 in x 0.85 in
Total Weight  8.82 oz. (250g) (including battery, different weights)
